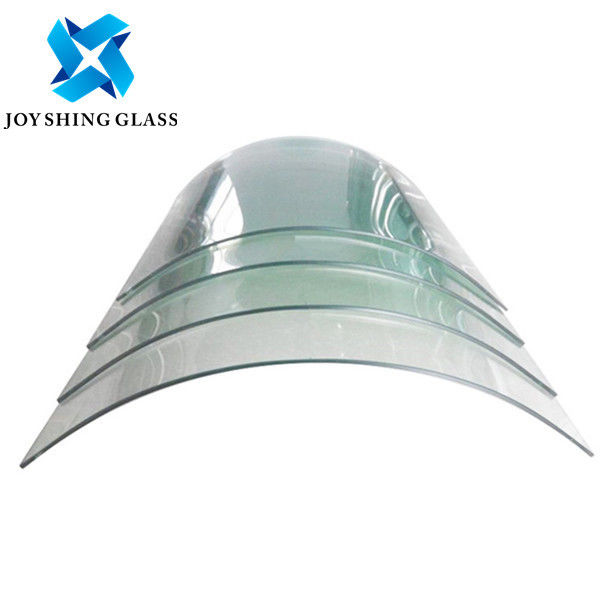

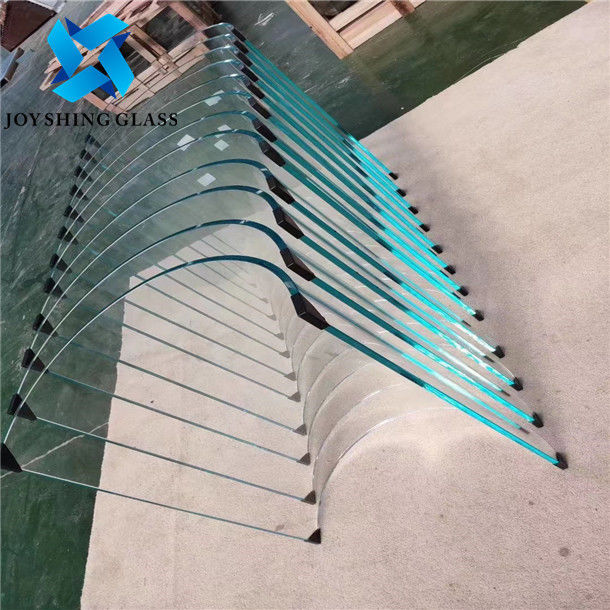

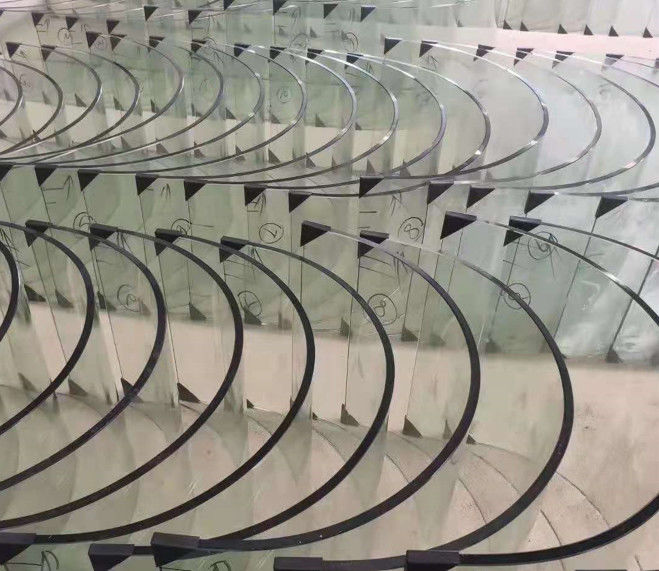

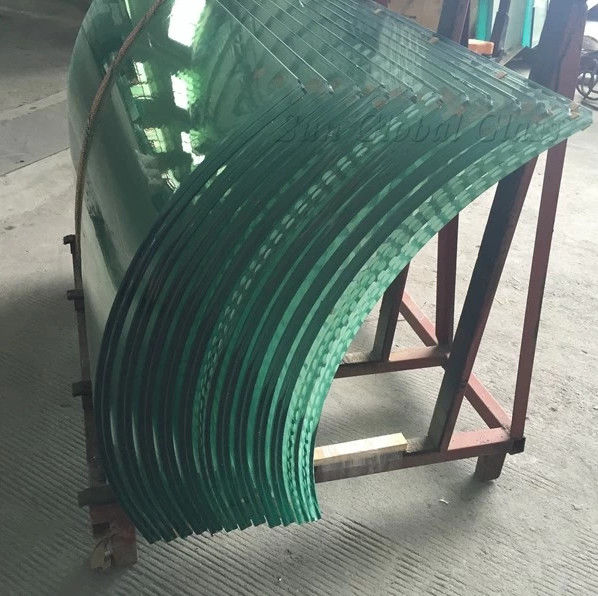

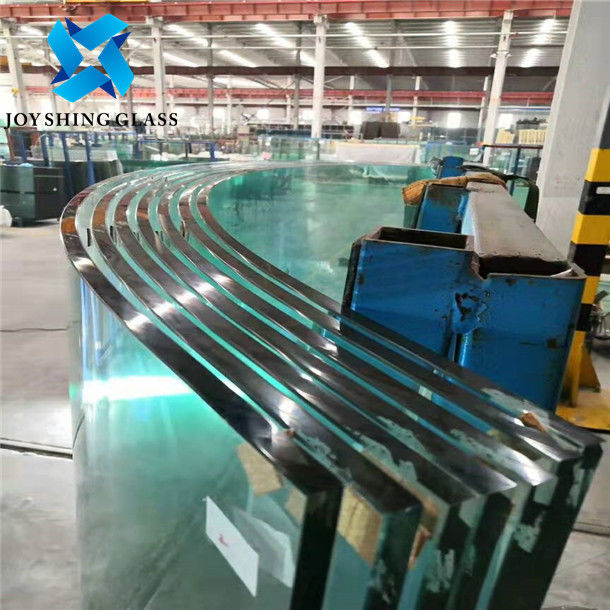

Architecture Tempered Glass Customized Size 5mm 6mm 8mm 10mm Bent Safety Toughened Glass
Joy Shing Glass supplies architectural tempered glass.We can produce size, thickness, color, edge, corner processing, etc. upon request. All fabrication that penetrates the glass surface (i.e., holes, notches, cutting) must take place prior to tempering or heat strengthening.
Advantages of architectural tempered glass
1. The strength of architectural tempered glass is high, which is 5 times that of ordinary glass.
2. Architectural tempered glass is safer and has strong impact resistance. Even when broken by external impact, the glass will break into small obtuse-angle particles to prevent sharp fragments from harming the human body.
3. Architectural tempered glass can withstand temperature differences of 300 degrees.
4. Architectural tempered glass can be produced in flat or curved shapes as required to meet different usage requirements. Among them, bent architectural glass has higher bending resistance.
Specification
|
Product Name
|
Architectural Tempered Glass
|
| Model | JY-T304 |
|
Thickness
|
4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm
|
|
Size & Color
|
Customized
|
|
Corner
|
Shape Corner,polished radius,dubbed corner,etc
|
|
Edge
|
Polished edge,pencil edge,flat edge,etc
|
|
Certiflcation
|
CCC, ISO, CE,AS/NZS2208
|
|
Miuimum Radius Range
|
5-6mm R>=450mm; 8mm- 10mmR>=650mm; 1 2mm- 19mmR>=1200
|
|
Features
|
Bent architectural tempered glass has same safety and ability of anti-impact with flat tempered glass, but has a higher intensity for the wind pressure and bending than the flat tempered glass.
|
|
Glass Types Available
|
▪ Clear,ultra clear(low iron) and Tints glass.
|
| ▪ Non-coated and Coated glass | |
| ▪ Low-E products(single silver low-e glass, double silver low-e glass,triple silver low-e glass) | |
| ▪ Flat and curved tempered glass | |
| ▪ Heat-strengthened glass | |
| ▪ PVB/EVA/SGP frosted laminated glass | |
| ▪ Acid etched curved tempered glass | |
| ▪ Digital printing glass | |
| Packing | Wooden case with iron belt packing for FCL sea ship, full wooden box for LCL sea or air ship. |
|
Delivery time
|
15 days
|
Joy Shing Glass Co., Ltd. was founded in 2013. We are integrated in producing, selling, service providing for all kinds of custom building glass like acid etched glass, low-e glass, mirror glass, tempered glass, laminated glass, insulated glass, AR coating glass, fire-rated glass, U channel glass, PDLC smart glass, etc.
