Customized Bent Tempered Laminated Glass Double Glazed Safety Glass
Joy Shing Glass supplies high-quality bent tempered laminated glass with more favorable wholesale purchase prices. We can customize and deeply process glass according to needs, including size, color, thickness, edges, holes, radius, silk screen, HST, etc. Integrated glass solutions for your building projects.
Product Specification
| Name | Bent Tempered Laminated Glass | |
| Brand | JOY SHING | |
| Total Thickness | Produced as required. | |
| Glass Thickness | 3-22mm | |
| PVB Thickness |
0.76mm,1.14mm, 1.52mm, 2.28mm, 3.04mm,etc. |
|
| Size |
300*600mm to 3400*20000. Dimensions produced as required. |
|
| Glass Type | Heat Strengthened Glass, 100% Tempered Glass, Heat Soaked Test Glass, Ultra Clear Glass, Tinted Glass, Screen printing glass,etc. | |
| Glass Color | Clear, Ultra clear, Green, F-green, Blue, F-blue, Brown, White, Bronze, etc. | |
| PVB Color | Milk White, Clear, Ultra clear, Bronze, Grey, Green, Blue, etc | |
| Shape | Bent | |
| Packaging Details |
1. Use protective paper film and soft wood pad for separate glass avoid breaking. 2. All glass are packed in strong wooden crates,nailed and strapped. 3. Can be packaged according to customer requirements |
|
| Warranty | 10 years | |
|
Sample |
Available |
|
|
Delivery |
15-20 working days | |
| Payment Terms | 30% deposit, and balance before shipment by T/T | |
Features
1. Impact resistance: Bent tempered laminated glass is stronger and more impact-resistant than ordinary laminated glass after quenching treatment.
2. Safety: Unlike ordinary tempered glass, bent tempered laminated glass has a sandwich structure, in which the PVB (polyvinyl chloride) film can firmly bond fragments to prevent glass fragments from scattering, providing additional safety.
3. Wind pressure resistance: Bent tempered laminated glass has been bent to increase its wind pressure resistance. It is able to withstand greater wind loads and external pressures and is suitable for areas requiring extra protection and strength.
4. UV protection: Bent tempered laminated glass can effectively block 99% of ultraviolet rays, reduce fading and damage to indoor objects, and provide ultraviolet protection.
5. Sound insulation: Bent tempered laminated glass can reduce noise by 30-40 decibels, creating a quieter environment.
Product Photo

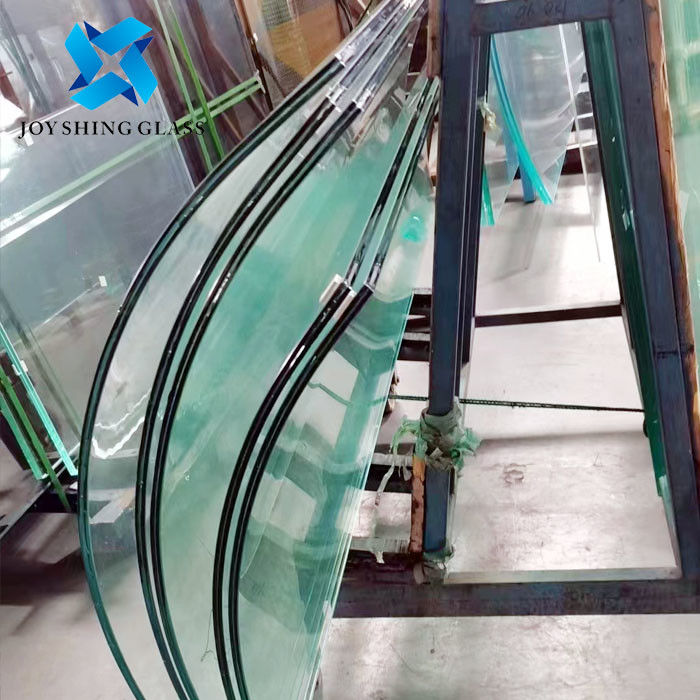

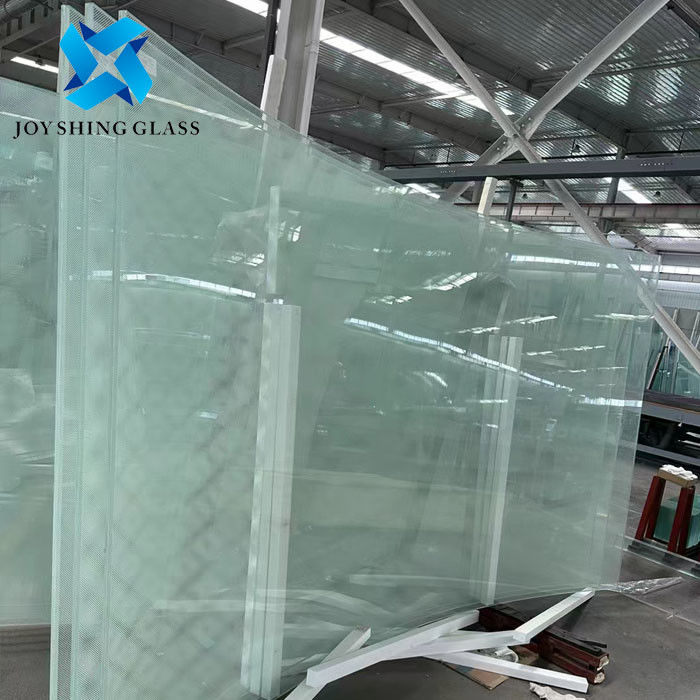

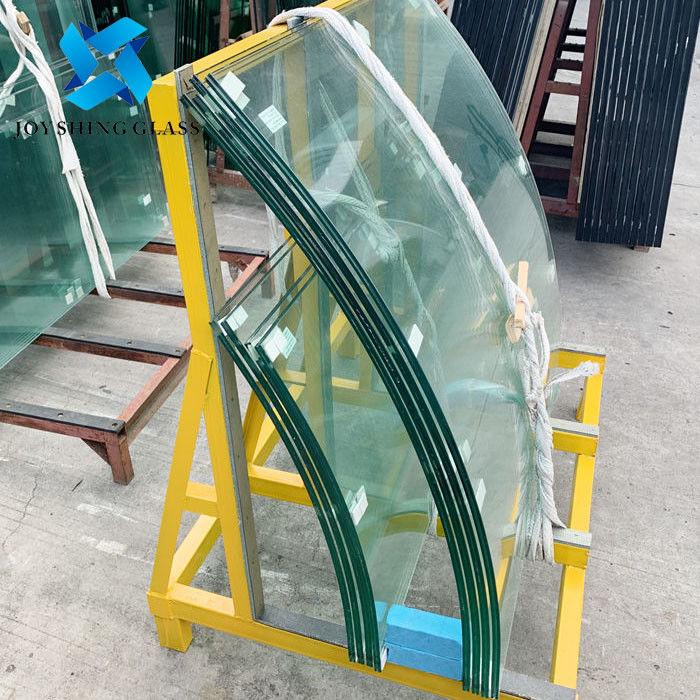

Customized colored glazed bent tempered laminated glass and 4-layer bent tempered laminated glass.
Application
1. Building exterior walls and curtain walls: Bent tempered laminated glass is often used in building exterior walls and curtain wall systems to provide wind pressure resistance and safety while increasing the innovation and beauty of the design.
2. Roofs and skylights: Bent tempered laminated glass can be used on roofs and skylights to create natural lighting and transparency. It can be customized into a variety of curved shapes, providing security, insulation and waterproofing.
3. Commercial and retail spaces: Bent tempered laminated glass is widely used in commercial and retail spaces, such as store windows, shopping mall doors, display cabinets, etc. It offers safety, impact resistance and design versatility.
4. Interior decoration: Bent tempered laminated glass is suitable for interior decoration, such as glass partitions, stair handrails, glass floors, spiral stairs, guardrails, shower doors, etc.
5. Museums and galleries: Bent tempered laminated glass is often used in display cases and protective walls in museums and galleries. It can provide safe protection for precious works of art and cultural relics.
