Heat Strengthened Laminated Glass 6.38mm to 100mm Safety Glass
Joy Shing Glass manufacturer supplies heat strengthened laminated glass, and the price is more favorable if purchased wholesale. As a professional glass manufacturer, we can customize and further process glass as required, providing integrated glass solutions for your project.
Heat Strengthened Laminated Glass, is a type of safety glass. It is made of two or more pieces of glass sandwiched between one or more layers of PVB film, which are glued together under high temperature and high pressure. Has the following advantages:
1. Safety: The PVB film in the middle of Heat strengthened laminated glass has high adhesion, so that when the glass is broken, flying fragments will not be produced, and the intact glass structure can still be maintained, thereby avoiding human injury caused by falling fragments.
2. The PVB film is very tough and has good penetration resistance, making heat strengthened laminated glass have certain anti-theft properties.
3. Sound insulation: heat strengthened laminated glass can reduce noise by 30-40 decibels. The thicker the PVB film, the better the sound insulation effect
4. Heat strengthened laminated glass can block 99% of ultraviolet rays.
Specification
Brand | JOY SHING | |
Name | Heat Strengthened Laminated Glass | |
Thickness | Thickness of Single Glass | 3mm,4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm, 22mm |
PVB Thickness | 0.38mm,0.76mm,1.14mm,1.52mm,3.04mm,etc. | |
Total Thickness | 6.38mm to 100mm | |
Size |
150*150mm to 3300*22000mm,custom size |
|
Glass Color | Clear, green, F-green, dark green, F-blue, dark blue, bronze, Euro grey, etc | |
PVB Color | clear,green,yellow,blue,grey,black,white,and other tinted | |
Our service | 1. Customized service: The thickness, number of glass layers, size, glass color, shape, PVB/SGP thickness, etc. 2. Glass deep processing: edges, corners, holes, tempering, HS, HST, coating, etc. 3. Provide integrated glass solutions, technical support, installation guidance, samples, etc. |
|

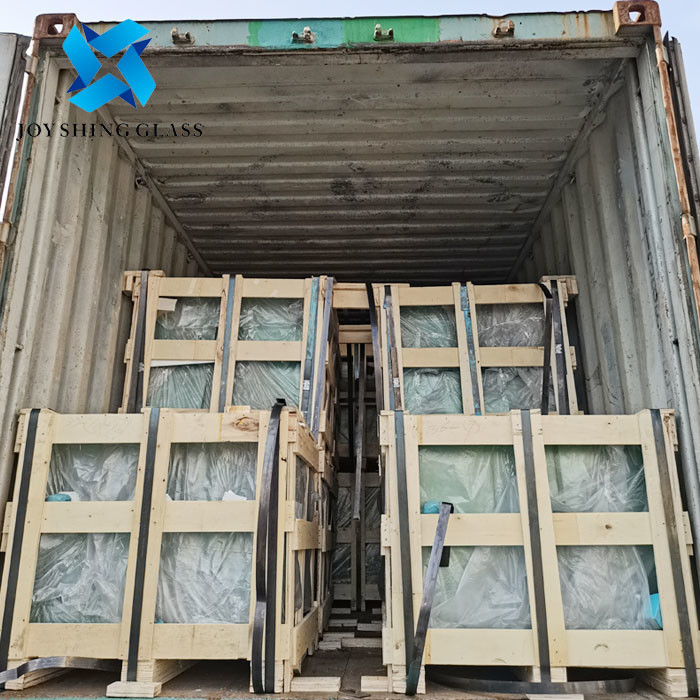

Packaging Details |
Sea Worthy Strong Wooden Crates Use protective paper film and soft wood pad for seprate glass avoid breaking. |
|
Warranty | 10 years | |
Lead time | within 20 working days | |
Payment Terms | 30% deposit, and balance before shipment by T/T |
Application
Heat strengthened laminated glass is widely used in building exterior curtain walls, sun rooms, glass doors, windows, partitions, railings, glass guardrails, car window glass and other fields

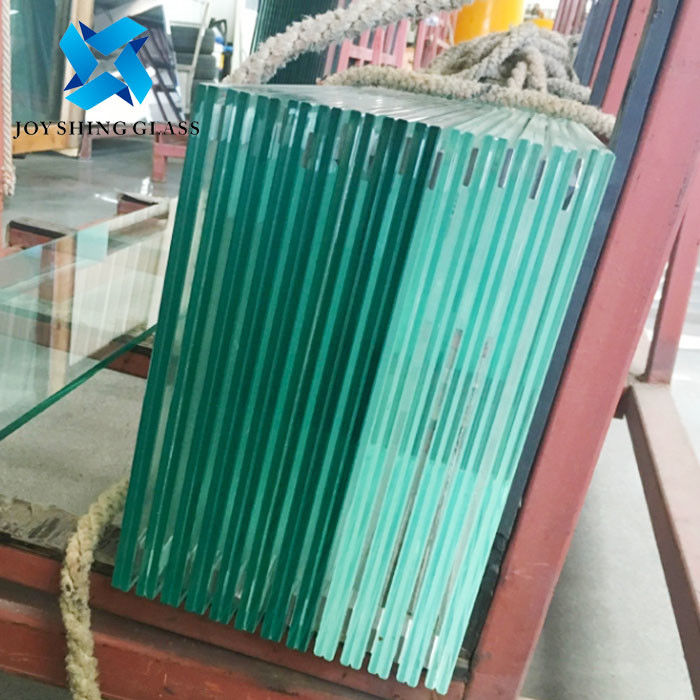

Product Photo
Application picture
