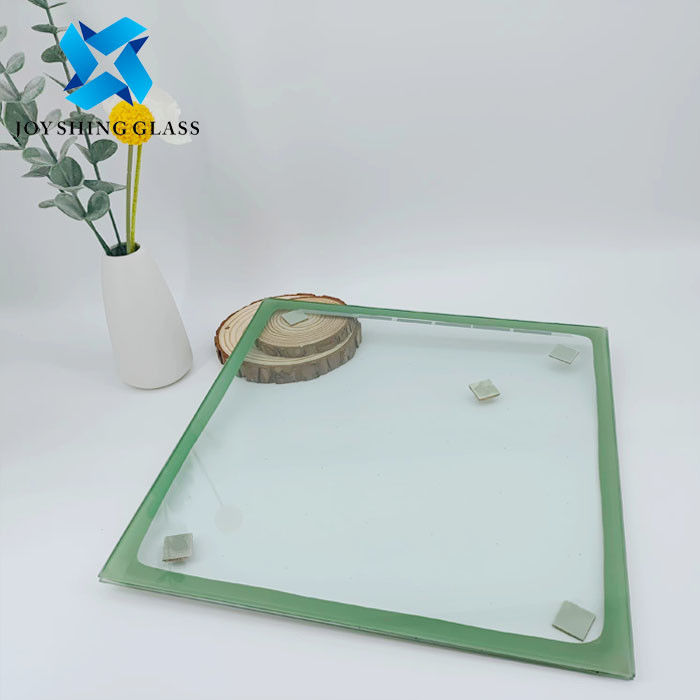

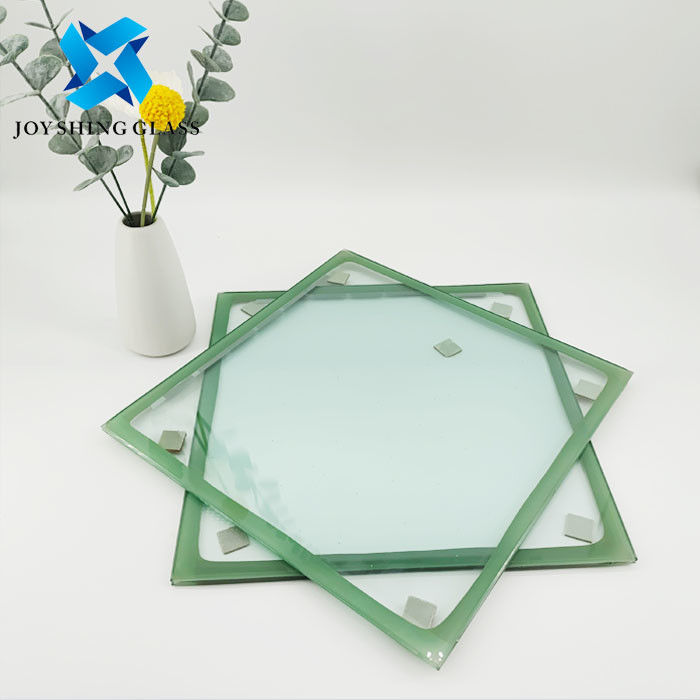

6.3mm Tempered Vacuum Glass Customized Clear Low-E Vacuum Glass
Joy Shing Glass manufacturers supply, wholesale purchase price is more favorable. The structure of 6.3mm tempered vacuum glass is 3TL+0.3V+3T, that is, 3mm clear Low-e tempered glass + 0.3mm vacuum layer + 3mm clear tempered glass.
Structure photo
Advantages of Joy Shing 6.3mm tempered vacuum glass
1. Joy Shing tempered vacuum glass adopts a one-step process and has no air extraction hole design. The glass has high flatness and more stable quality, and has a service life of up to 35 years.
2. Joy Shing 6.3mm vacuum glass all uses tempered glass, which is high in strength and safer.
3. The insulation volume of 6.3mm tempered vacuum glass reaches 38 decibels and the noise reduction effect is good
4. The U value of 6.3mm Low-e tempered vacuum glass is <0.6W/㎡·K, and the heat insulation effect is good
5. Anti-frost and dew: The dew point of tempered vacuum glass is ≤-51°C, which effectively prevents internal condensation and extends the service life of the LOW-E film.
6. Tempered vacuum glass has good energy saving and consumption reduction effects, saving energy costs.
Specification
|
Product name
|
6.3mm Tempered Vacuum Glass
|
|
Model Number
|
JY-IV121
|
|
Shape
|
Rectangle, square, etc. customized.
|
|
Glass thickness
|
6.3mm (3TL+0.3V+3T)
|
|
Glass Type
|
Low-E Tempered Glass, Tempered Glass
|
|
Max Size
|
1500mm*2500mm, customized.
|
| Color | Clear. other color available |
|
Vacuum Thickness
|
0.3mm
|
| U value | <0.6W/㎡·K |
|
Warranty
|
25 years
|
|
After-sale service
|
Online Technical Support, Onsite Inspection
|
|
Project solution
|
total solution for projects, Others
|
|
Packaging Details
|
Sea Worthy Strong Wooden Crates
|
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
1. 6.3mm Clear Low-e Tempered Vacuum Glass
2. Tempered Vacuum Glass
Application
Tempered vacuum glass is suitable for doors, windows and curtain walls in energy-saving buildings and green buildings; high-end residential decoration, commercial building renovation, passive house construction; freezer manufacturing; photovoltaic construction and other fields.
Joy Shing Glass Co., Ltd. was founded in 2013. We are integrated in producing, selling, service providing for all kinds of custom building glass like acid etched glass, low-e glass, mirror glass, tempered glass, laminated glass, insulated glass, AR coating glass, fire-rated glass, U channel glass, PDLC smart glass, etc.
