Custom 9/16" Thick Curved Tempered Laminated Glass 14.28mm Laminated Glass
Joy Shing Glass supplies 9/16" thick curved tempered laminated glass (i.e. 14.28mm laminated glass), and the wholesale purchase price is more favorable. Its structure consists of 6mm curved tempered glass + 2.28mm PVB film + 6mm curved tempered glass . We can customize and deeply process glass as required or drawing, including size, color, edges, corners, holes, radius, silk screen, hollow, etc. Provide integrated glass solutions, technical support and other services for your project.
Product Specification
| Name | Curved Tempered Laminated Glass | |
| Brand | JOY SHING | |
| Total Thickness | 9/16" (14.28mm). Produced as required. | |
| Glass Thickness | 6mm, Other thicknesses 3-22mm optional | |
| PVB Thickness |
2.28mm, other thickness available: 0.38mm,0.76mm,1.14mm, 1.52mm, 3.04mm |
|
| Size |
300*600mm to 3400*20000. Dimensions produced as required. |
|
| Glass Type | Heat Strengthened Glass, 100% Tempered Glass, Heat Soaked Test Glass, Ultra Clear Glass, Tinted Glass, Screen printing glass,etc. | |
| Glass Color | Clear, Ultra clear, Green, F-green, Blue, F-blue, Brown, White, etc. | |
| PVB Color | White, Clear, Bronze, Grey, Green, Blue, etc. Other colors available | |
| Shape | Curved. | |
| Packaging Details |
1. Use protective paper film and soft wood pad for separate glass avoid breaking. 2. All glass are packed in strong wooden crates,nailed and strapped. 3. Can be packaged according to customer requirements |
|
| Warranty | 10 years | |
|
Sample |
Free samples available |
|
|
Delivery |
7-15 working days | |
| Payment Terms | 30% deposit, and balance before shipment by T/T | |
Features
1. Curved tempered laminated glass has better bending resistance and wind pressure resistance
2. Higher safety: Curved tempered laminated glass has high strength and impact resistance and is not easily broken. Even if it breaks, there will be no flying glass fragments to harm the human body.
3. PVB curved tempered laminated glass has good sound insulation effect and can reduce noise by 30-40 decibels
4. PVB film can block 99% of UV rays (PVB film can be supplied separately)

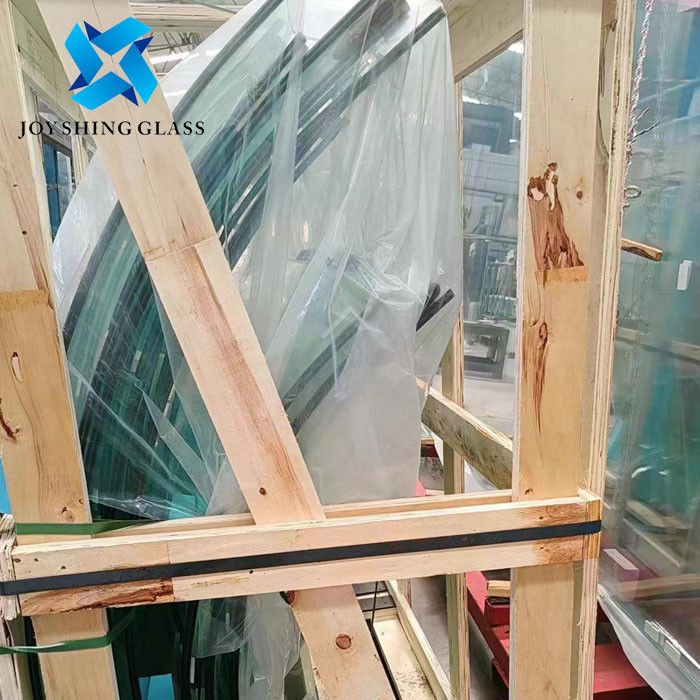

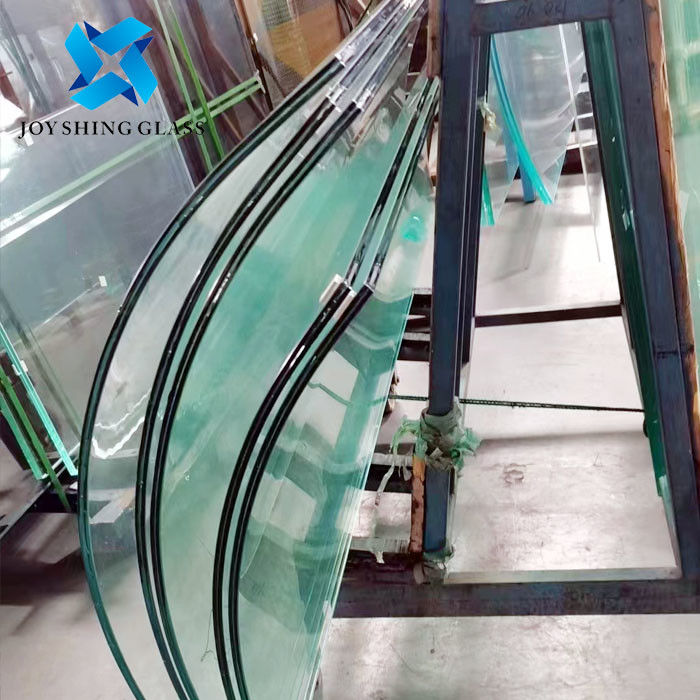

Product Photo
Application
Curved tempered laminated glass is widely used in curved building curtain walls, lighting roofs, rotating stair railings, handrails, sightseeing elevators, shower doors, etc.
