Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Laminated Glass JY-L222
Contact Us
Tempered Laminated Glass Custom Safety Laminated Glass
Joy Shing Glass manufacturer supplies safety laminated glass: Tempered laminated glass is a kind of safe architectural glass. It is made of two or more pieces of tempered glass sandwiched between one or more layers of film (PVB/SGP/EVA optional), which are glued together under high temperature and high pressure. Compared with regular glass, tempered laminated glass has the advantages of high strength, strong load-bearing capacity, high safety, sound insulation and noise reduction, and UV protection.
As a professional glass manufacturer, we can customize and deeply process glass according to requirements, including size, shape, color, thickness, film thickness/color/type, drilling, edging, corners, film, composite processing, etc. Integrated glazing solutions for your project. Wholesale purchase prices are more favorable. If you are interested in our products, you can contact us at any time for details, prices, samples, etc.
Product Specification
| Name | Tempered Laminated Glass | |
| Brand | JOY SHING | |
| Total Thickness | 6.38mm to 100mm. Produced as required. | |
| Glass Thickness | 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm, 22mm. | |
| Film Thickness |
PVB film thickness: 0.38mm,0.76mm,1.14mm, 1.52mm, 2.28mm, 3.04mm SGP film thickness: 0.76mm, 0.89mm, 1.52mm, 2.28mm |
|
| Size |
150*150mm to 3300*22000. Dimensions produced as required. |
|
| Glass Type | Heat Strengthened Glass, 100% Tempered Glass, Heat Soaked Test Glass, Ultra Clear Glass, Tinted Glass, Screen printing glass,etc. | |
| Glass Color | Clear, Ultra clear, Green, F-green, Blue, F-blue, Brown, White, etc. Other colors available | |
| PVB Color | White, Clear, Bronze, Grey, Green, Blue, etc. Other colors available | |
| Glass Layers | Double layer, three layers, four layers, five layers, six layers, etc. | |
| Shape | Flat, curved, rectangle, circle, square, trapezoid, irregular shape, etc. | |
| Packaging Details |
Use protective paper film and soft wood pad for separate glass avoid breaking. All glass are packed in strong wooden crates,nailed and strapped. Can be packaged according to customer requirements |
|
| Warranty | 10 years | |
|
Sample |
Free samples available |
|
|
Delivery time |
7-15 working days | |
| Payment Terms | 30% deposit, and balance before shipment by T/T | |
Features of tempered laminated glass
1. The strength and load-bearing capacity are 3-5 times that of ordinary glass, and it has higher impact resistance.
2. Tempered laminated glass has high safety and is not easily broken. Even if it is broken, it will maintain a complete glass structure and will not produce flying fragments to harm the human body. If the film uses SGP, the glass will have greater strength and bending resistance and will not be easily bent.
3. Tempered laminated glass has good sound insulation effect and can generally reduce noise by 30-40 decibels.
4. Excellent UV protection effect, blocking 99% of UV rays

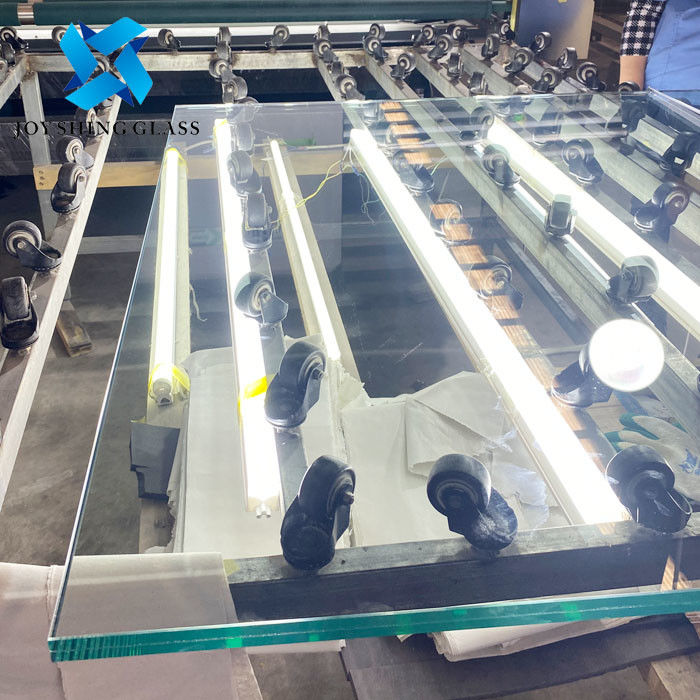

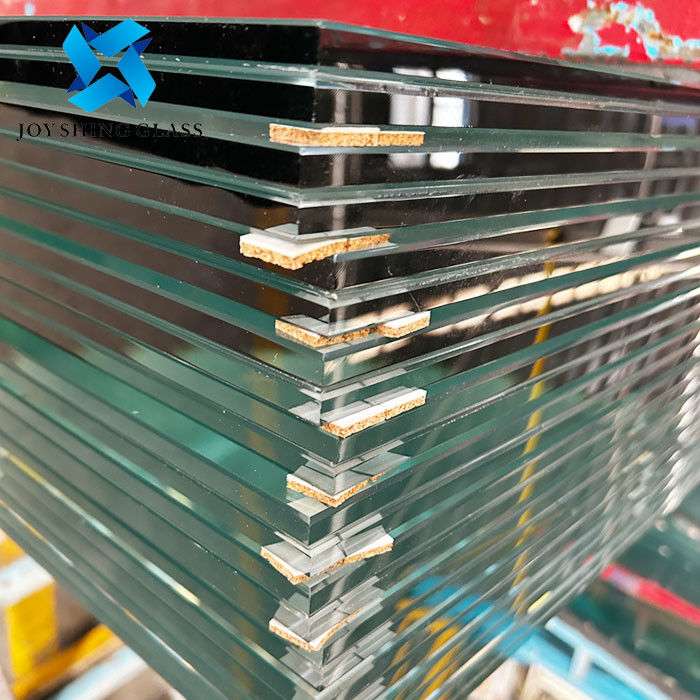

Product Photo
Application
Tempered laminated glass can be customized with multi-layer laminated glass, insulated laminated glass, etc. as required to achieve better use effects. It is widely used in building exterior walls, curtain walls, balconies, stairs, handrails, doors and windows, and automobile front windshields.
