Customized Curved Toughened Laminated GLass

Customized Curved Toughened Laminated GLass

Curved Toughened Laminated GLass

Customized Toughened Laminated GLass

Place of Origin:


Brand Name:




Model Number:

Laminated Glass JY-L216

Contact Us

Request A Quote
Product Details
Curved Toughened Laminated GLass
1830*2440mm,3300*2440mm,3660*2440mm,Custom Size
Total Thickness:
Glass Thick+PVB Thick+Glass Thick, 6.38mm-100mm
Glass Thickness:
3mm To 19mm
PVB/EVA Thickness:
Glass Color:
Clear,Extra Clear,Grey, Ford Blue,French Green,etc.
PVB/EVA Color:
Clear,Green,Grey,can Be Produced As Per Request
10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 wooden box
Packaging Details
Wooden box
Delivery Time
Payment Terms
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
Product Description

Joy Shing Glass manufacturers supply curved toughened laminated glass, wholesale purchase price discount! The size, thickness, shape, color, etc. of the product can be customized according to customer requirements or drawings. Provide glass deep processing including edges, corners, holes, coating, acid etching, etc.
Our glass products have undergone strict quality inspections and passed relevant certifications. You can rest assured to buy!

As a professional glass manufacturer in China, Joy Shing Glass has the following advantages:

1. More than 10 years experience in glass manufacturing and exporting
2. Advanced glass machinery and mature production technology
3. Select high-quality glass raw materials
4. Long service life, 10 years warranty
5. Products are exported to 75 countries around the world, with more than 500 customers
6. Professional production and sales team: provide personalized customization, integrated solutions, online technical support, free samples and other services.
7. Safe packaging and fast delivery

Customized Curved Toughened Laminated GLass 0Customized Curved Toughened Laminated GLass 1

Product Specification

Name Curved Toughened Laminated GLass
Thickness Thickness of Single Glass 3mm-19mm
PVB Thickness 0.38mm,0.76mm,1.14mm,More thickness options are available
Total thickness 6.38mm to 100mm

1830*2440mm,3300*2440mm,3660*2440mm,Custom size

Glass Color Clear,Extra clear,Grey, Ford blue,French green,etc.
PVB Color Clear,Green,Grey,can be produced as per request
Shape Rectangular, square or custom shapes
Packaging Details

Use protective paper film and soft wood pad for separate glass avoid breaking.

All glass are packed in strong wooden crates,nailed and strapped.

Can be packaged according to customer requirements

Warranty 10 years


Free samples available


Generally 15-20 days, according to the quantity of the order
Payment Terms 30% deposit, and balance before shipment by T/T


Features of curved toughened laminated glass
1. Strong strength and impact resistance, 3-5 times that of ordinary glass
2. Curved tempered laminated glass has better wind pressure resistance and bending resistance
3. Safety glass, even if the glass is broken, the shards will stick to the PVB film, maintaining a complete glass structure without splashing shards.
4. Better sound insulation effect, can reduce noise by 30-40 decibels. The greater the thickness of the PVB film, the better the sound insulation effect.
5. Anti-ultraviolet: PVB film can block 99% of ultraviolet rays

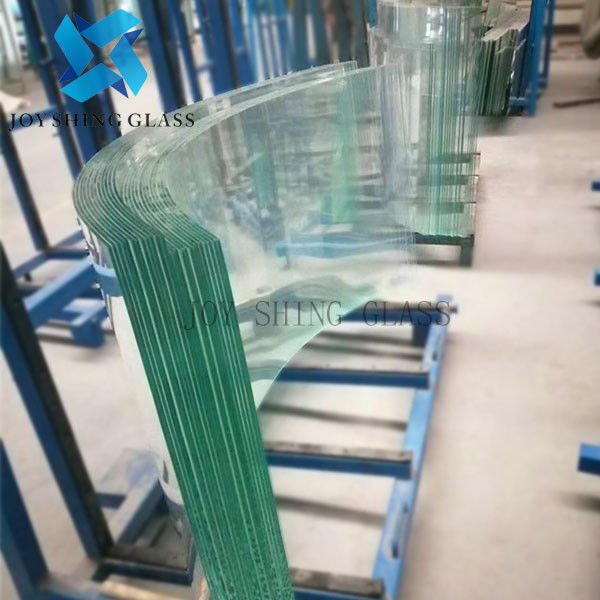

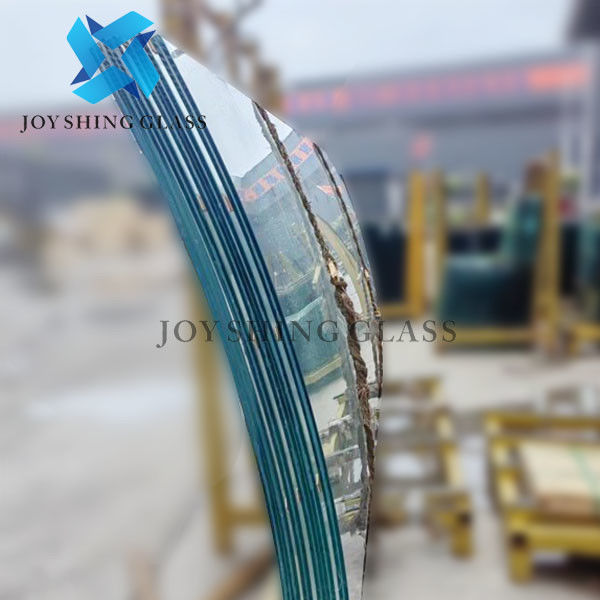

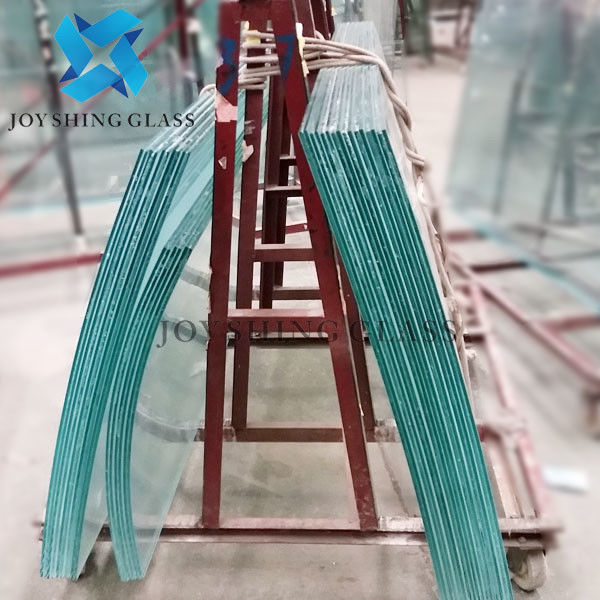

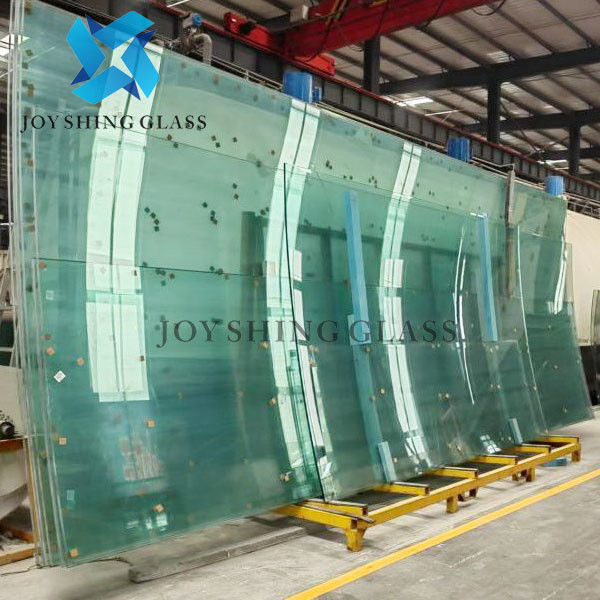

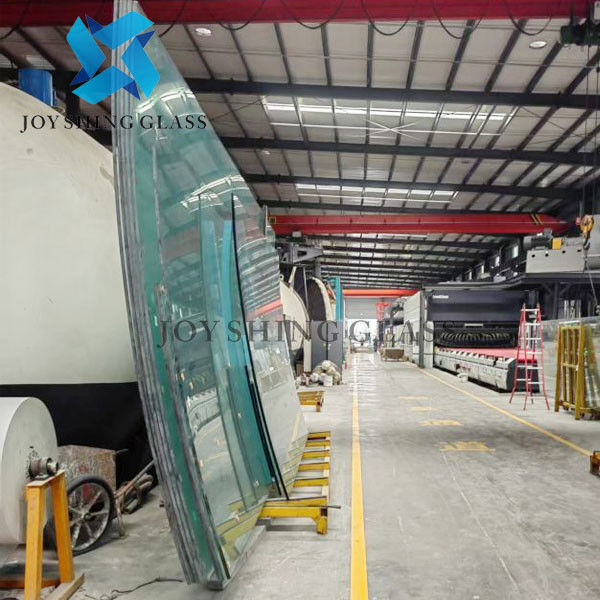

Product Photo

Curved Toughened Laminated GLassCustomized Curved Toughened Laminated GLass 3



Curved toughened laminated glass is widely used in building curtain walls, showcases, doors and windows, bars, partitions, stairs, handrails, ceilings, skylights, sightseeing elevators and other scenes, bringing a comprehensive effect of beauty and safety.

Customized Curved Toughened Laminated GLass 4

Customized Curved Toughened Laminated GLass 5

Customized Curved Toughened Laminated GLass 6

Customized Curved Toughened Laminated GLass 7

Customized Curved Toughened Laminated GLass 8Customized Curved Toughened Laminated GLass 9

Customized Curved Toughened Laminated GLass 10

Q: What is the MOQ?
A: Generally, there is no MOQ for processed glass, but if you want to receive the best price, the bigger quantity, the better price.
Q: Can I have a small sample to verify the quality?
A: Sure, we welcome samples to be tested and checked for quality.
Q: Can I visit your factory?
A: Yes, we welcome all of the customers to visit our factory when you have real requirements, we will take you to each of our production lines, and discuss orders in our office.
Q: Do you offer a guarantee for the products?
A: Yes, generally, we offer 10 years warranty for processing glass based on your normal uses, we advise you use it in the right way can keep your product's service life a long time .
Q: How do you control the quality of your products?
A: We have standard management in the factory based on the ISO system, and train our staff regularly, our production department will choose high-quality materials for glass strictly, for finished excellent products. And we have QC for each process, once find any problem, we will replace the glass, to make sure every piece of glass go to the customer's warehouse is in good condition.
