Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Vacuum Glass JY-IV118
Contact Us
Vacuum Insulated PVB Laminated Glass is a composite vacuum glass with a four-glass three-cavity structure, consisting of a layer of Low-E vacuum, a layer of hollow and a layer of PVB glass. The biggest feature of this glass is that it is configured on the basis of vacuum glass. Noise reduction performance and safety performance have been further enhanced.
Joy Shing glass factory direct sales, can produce glass thickness, size, color, composite vacuum insulating glass, vacuum laminated glass, etc. according to customer requirements.Our company has rich industry experience and engineering cases, and can provide integrated glass solutions, online technical consultation, and perfect after-sales service for your projects.
Specification
|
Product name
|
Vacuum Insulated PVB Laminated Glass
|
|
Model
|
JY-IV118
|
|
Shape
|
Flat,curved
|
| structure | 6T+12A+5TL+V+5T+0.76P+6T |
|
Single glass thickness
|
3mm,4mm,5mm,6mm,Custom.
|
| PVB color | green,white,clear,blue,grey,etc. |
| PVB thickness | 0.38mm,0.76mm,1.14mm,etc. |
|
Hollow thickness
|
6A,9A,12A,16A,19A,etc,could be produced as your required
|
|
Size
|
Mini size:300*300mm max size:1500*2500mm Custom
|
|
Vacuum layer thickness
|
0.15mm,0.3mm
|
| Composite process | Insulated, laminated,etc. |
| Lead time |
15-20 days |
|
Warranty
|
25 years
|
|
Project solution
|
Total solution for projects, Others
|
|
Packaging Details
|
Sea Worthy Strong Wooden Crates
|
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
| Glass structure | Type of low-e glass | U Value W/m²· K | SHGC | Visible Light | db | |
| Transmittance % | Reflectivity% | |||||
| 6T+12A+5TL+V+5T+0.76P+6T | single silver | 0.39 | 0.47 | 64.97 | 24.75 | 42 |
| double silver | 0.36 | 0.36 | 58.25 | 20.47 | ||
Remark:
6T: 6mm tempered glass ; 12A:12mm hollow thickness; 5TL: 5mm Low-e tempered glass ;
V: vacuum layer ; 0.76P: 0.76mm PVB layer;
Above data are for reference only. parameters for a specific product needs to be calculated separately.
For parameters related to a specific product. please refer to the data provided by Joy Shing Glass.
Advantages
1. Safety:
When the glass is broken, the fragments will stick to the PVB film, and there will be no splashing and hurting people.
2. Insulation:
The vacuum layer effectively isolates air convection and heat transfer, and the Low-E glass significantly reduces the radiation heat transfer between two pieces of glass.The thermal insulation performance of vacuum glass is about 6-8 times that of single glass, and 4-6 times that of insulating glass
3. Anti-condensation:
Due to the high heat insulation performance of vacuum glass, it is difficult to dissipate the indoor heat, and the surface temperature of the glass is higher than the dew point, so it is not easy to generate condensation.
4. Low noise:
The vacuum layer of the vacuum glass effectively isolates the sound transmission. The sound insulation of single vacuum glass can reach 39dB, and the sound insulation of composite vacuum glass can reach 42dB.
5.Long service life:
he edge of the vacuum glass is sealed with inorganic non-metallic materials. The vacuum state can protect the Low-E film layer more effectively. There is no aging failure problem and the service life is long.

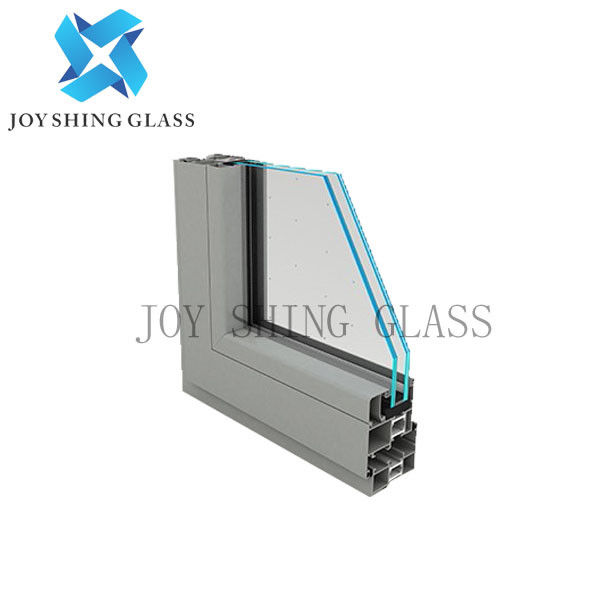

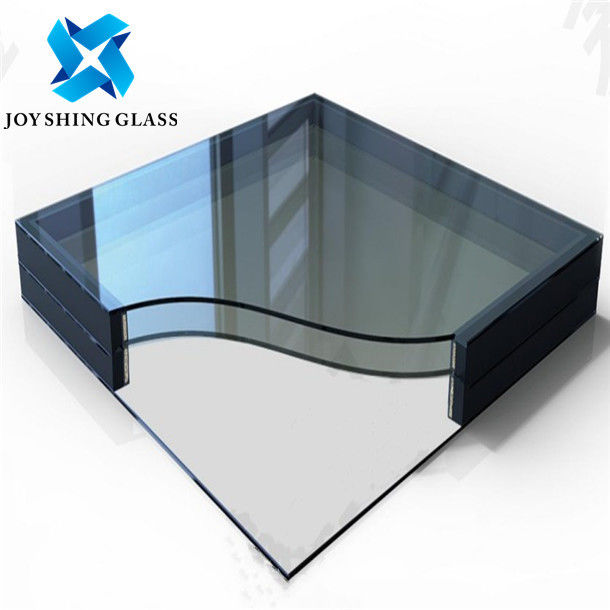

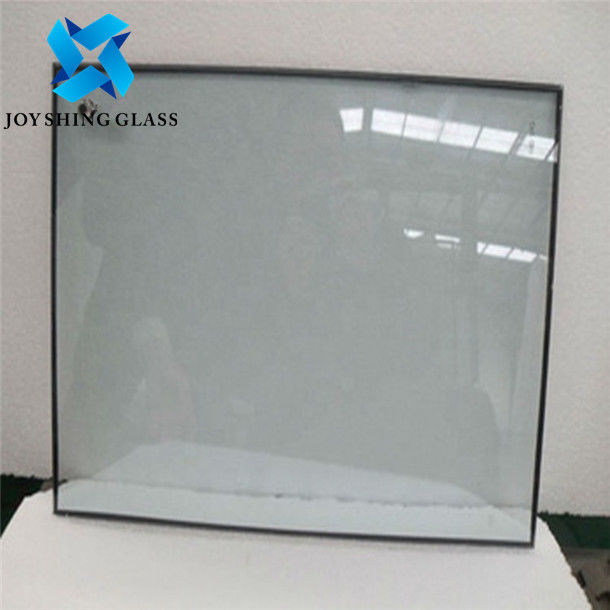

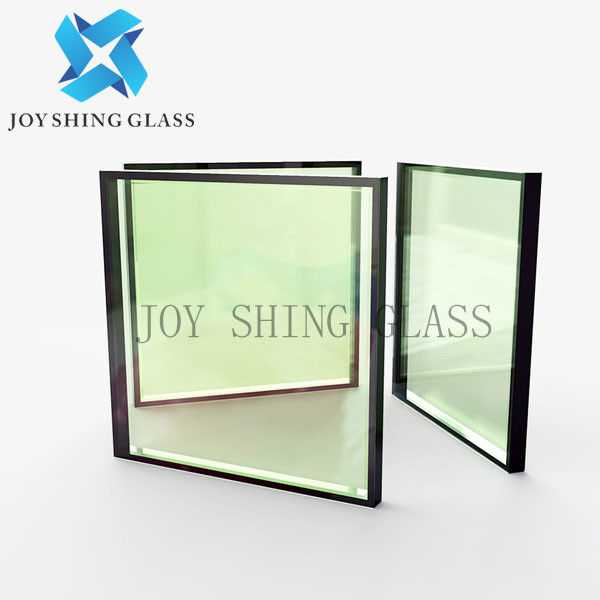

Product photo
Application fields of vacuum glass

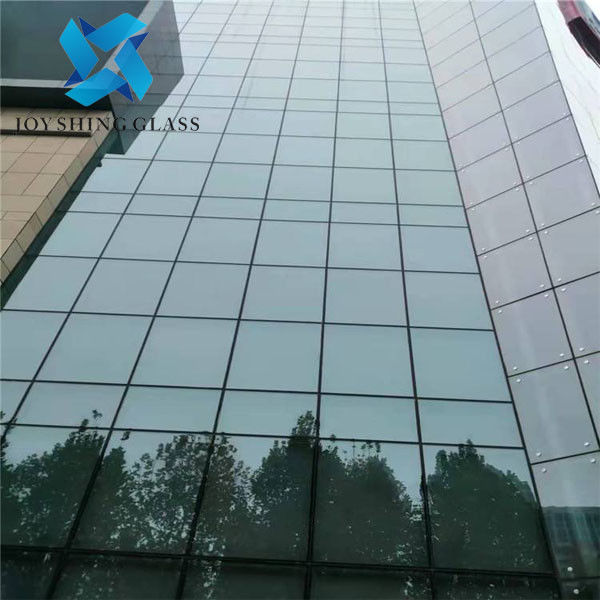

Doors, windows, curtain walls, and skylights for commercial and residential buildings, public facilities, green buildings as well as landmark structures;suitable as flat window materials for automobiles, high-speed rail, aircraft, and vessels.
Joy Shing Glass Co., Ltd. was founded in 2013. We are integrated in producing, selling, service providing for all kinds of custom building glass like acid etched glass, low-e glass, mirror glass, tempered glass, laminated glass, insulated glass, AR coating glass, fire-rated glass, U channel glass, PDLC smart glass, etc.
