Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Vacuum Glass JY-IV113
Contact Us
What is vacuum glass?
Vacuum glass is to seal the surroundings of two pieces of flat glass, and then evacuate the gap between them. There is no air in the space, so there will be no heat conduction and convection, which has the effect of super heat insulation and sound insulation. The gap of the vacuum layer is usually 0.15mm-0.3mm.
Joy Shing Glass has special-shaped vacuum glass production technology: Flat special-shaped vacuum glass, curved special-shaped vacuum glass.
Specification
|
Product name
|
Vacuum Glass
|
|
Model
|
JY-IV114
|
|
Shape
|
Flat,curved
|
|
Thickness
|
Custom.
|
|
Glass Type
|
LOW-E Tempered Vacuum Glass
|
|
Size
|
Mini size:300*300mm max size:1500*2500mm Custom
|
|
Application
|
Curtain wall , windows,Glass door etc
|
|
Vacuum layer thickness
|
0.15mm,0.3mm
|
| Composite process | Hollow, laminated |
| Lead time |
Within 15 days |
|
Warranty
|
25 years
|
|
Project solution
|
Total solution for projects, Others
|
|
Packaging Details
|
Sea Worthy Strong Wooden Crates
|
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
| Glass structure | LOW-E glass type | U Value W/m²· K | SHGC | Visible Light | |
| Transmittance % | Reflectivity% | ||||
| 4TL+V+4T | single silver | 0.42 | 0.56 | 78.65 | 15.33 |
| 4T+12A+4TL+V+4T | single silver | 0.39 | 0.51 | 71.94 | 20.62 |
Remark:
4T: 4mm tempered glass ; 4TL: 4mm Low-e tempered glass ;V: vacuum layer ; 12A: 12mm argon layer
Above data are for reference only. parameters for a specific product needs to be calculated separately.
For parameters related to a specific product. please refer to the data provided by Joy Shing Glass.
Advantages of vacuum glass
1. Sound insulation:
The weighted sound insulation of vacuum glass reaches 39 decibels, and the weighted sound insulation of general insulating glass is about 28 decibels
2. Insulation:
The U value can be as low as 0.48W/(m-K), and the heat insulation effect of 8.3m thick vacuum glass exceeds that of 1.5m thick brick wall.Joy Shing vacuum glass effectively isolates heat transfer, and its thermal insulation performance is 2-4 times that of insulating glass and 6-10 times that of single glass.
3. Anti-condensation:
There is no gas inside the vacuum glass, so there will be no "internal condensation and fogging"

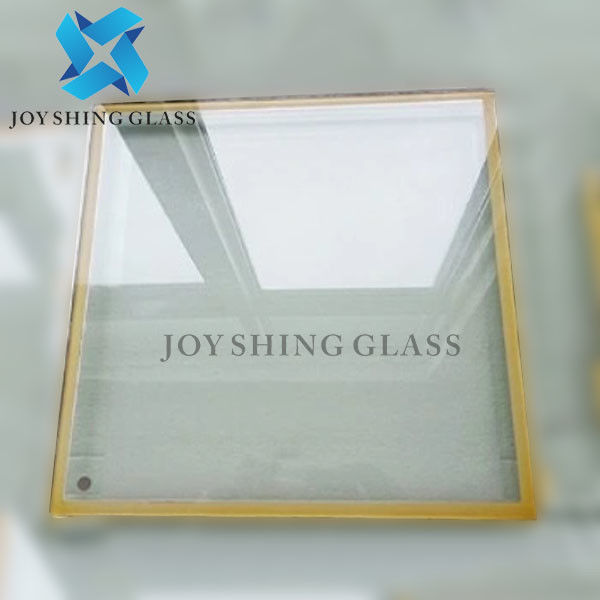

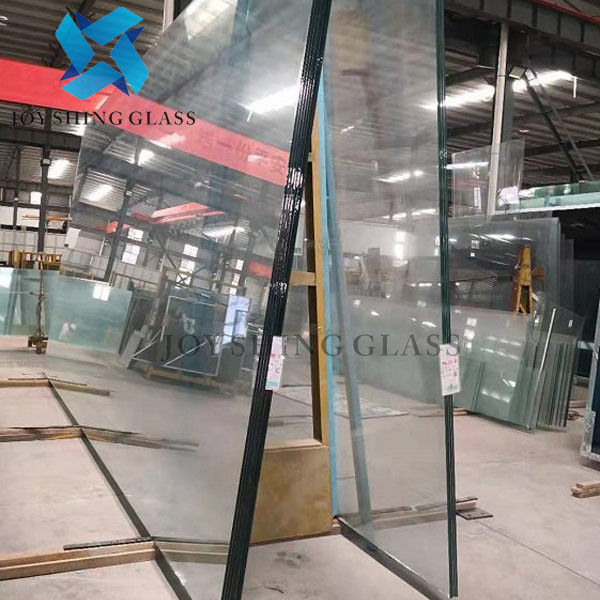

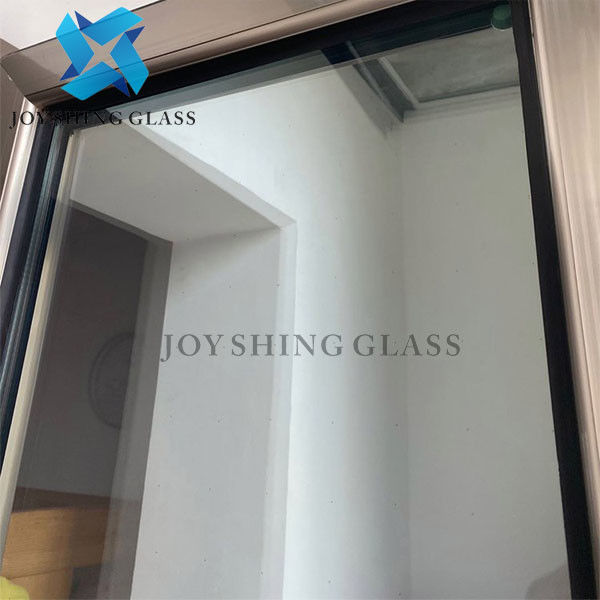

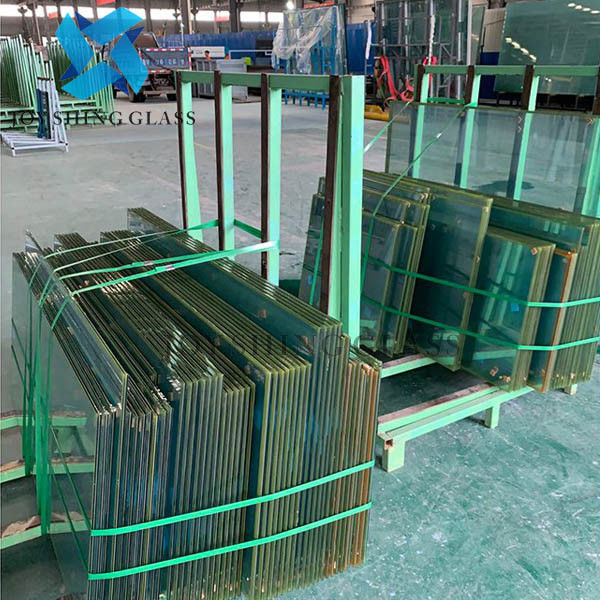

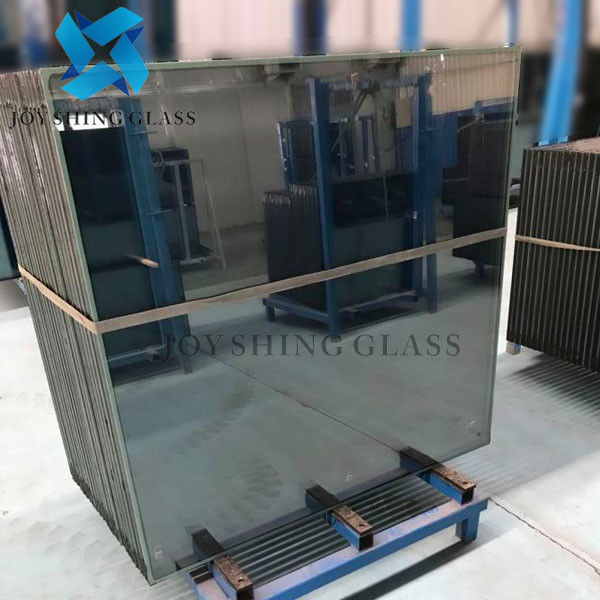

Product photo
Application fields of vacuum glass
Vacuum glass is widely used in many fields such as building energy saving, noise reduction in homes and public buildings (quiet room), high-end home appliances, cold chain, etc.
Joy Shing Glass Co., Ltd. was founded in 2013. We are integrated in producing, selling, service providing for all kinds of custom building glass like acid etched glass, low-e glass, mirror glass, tempered glass, laminated glass, insulated glass, AR coating glass, fire-rated glass, U channel glass, PDLC smart glass, etc.
