Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Vacuum Glass JY-IV111
Contact Us
Vacuum Glass Window 6TL+0.3V+6T LOW-E Tempered Vacuum Glass Anti-condensation
Vacuum glass is a new type of energy-saving glass. The structure of vacuum glass is similar to insulating glass, the difference is that the gas in the cavity of vacuum glass is very thin, almost close to vacuum. Compared with normal glass, vacuum glass is lighter, thinner and has better thermal insulation effect. There is no gas inside the vacuum glass, so there will be no "internal condensation and fogging".The service life of Jiaxing vacuum glass can be as long as 25 years.
The structure of vacuum glass
Vacuum glass seals the surroundings of two pieces of flat glass, evacuates the gap and seals the exhaust holes. The minimum gap between the two pieces of glass is 0.3mm. In order to achieve better heat insulation performance, one of the glass uses Low-E Glass
Specification
|
Product name
|
Vacuum Glass Window
|
|
Model
|
JY-IV111
|
|
Structure
|
6TL+0.3V+6T
|
|
Glass thickness
|
12.3mm
|
|
Size
|
1000mm*1200mm
custom
|
|
Vacuum Layer Width
|
0.3mm
|
| Lead time |
15 working days |
|
Warranty
|
25 years
|
|
Samples
|
Free samples available |
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
| Model | Low-E vacuum glass | Thickness | Visible Light | Solar Energy | NFRC 100-2010 | LSG |
Weighted sound insulation dB |
||||||
| Transmittance % | Reflectivity% | Transmittance % | Reflectivity% | U Value W/m²· K | SHGC | Shading Coefficient | |||||||
| Ext. | Int. | Winter Nighttime | Summer Daytime | ||||||||||
| JY-IV111 | 6TL+0.3V+6T | 12.3mm | 84.1 | 11.9 | 11 | 46 | 31 | 0.5 | 0.6 | 0.36 | 0.52 | 1.39 | 45 |
Above data are for reference only. parameters for a specific product needs to be calculated separately.
For parameters related to a specific product. please refer to the data provided by Joy Shing Glass.

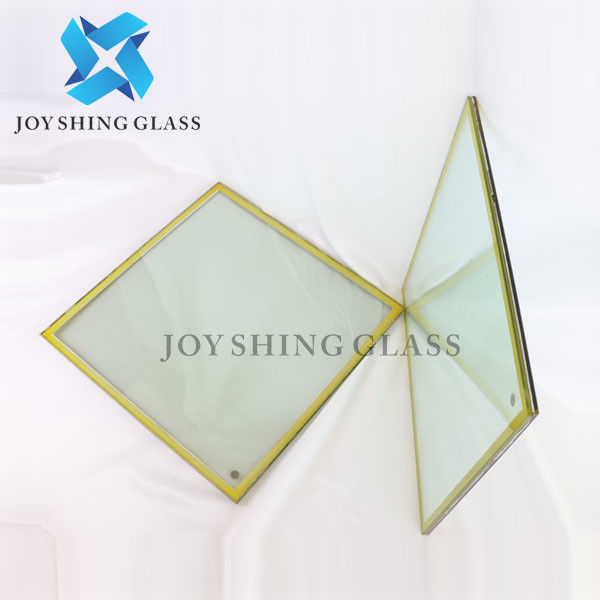

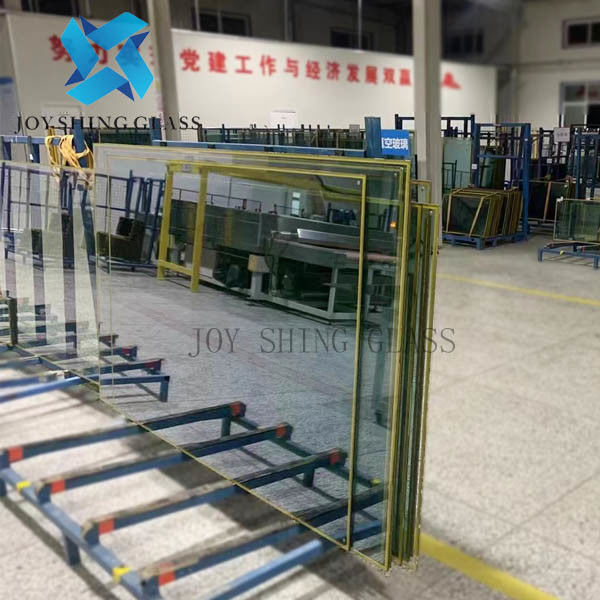

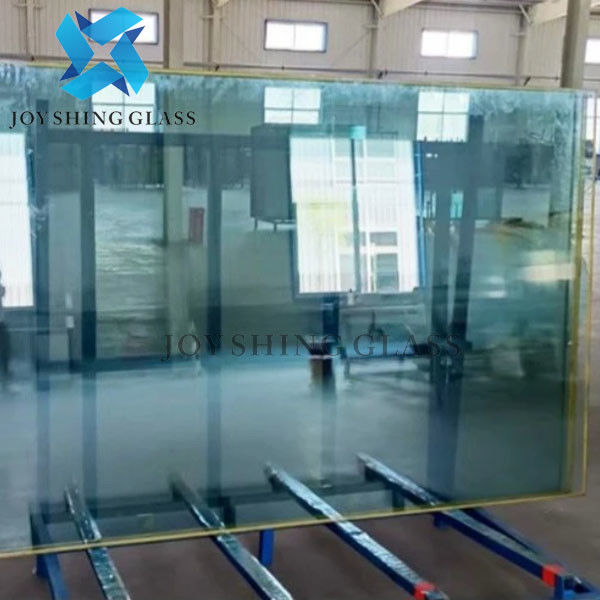

Product photo
Application Fields Of Vacuum Glass
Building

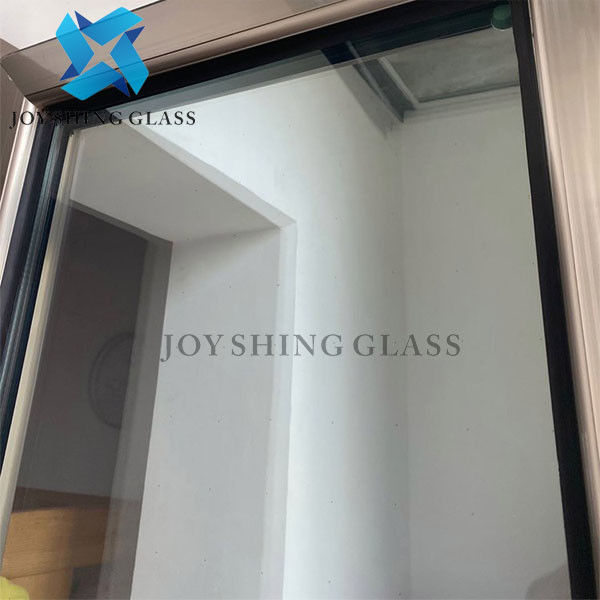

Window

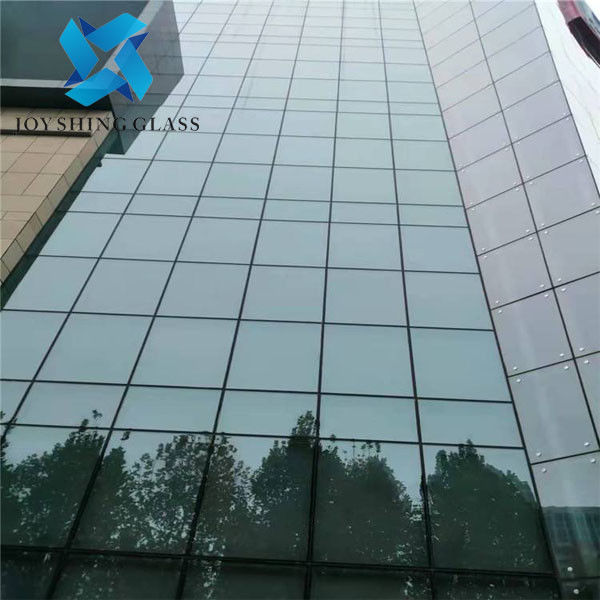

Curtain Wal
Door
Greenhouse etc.
