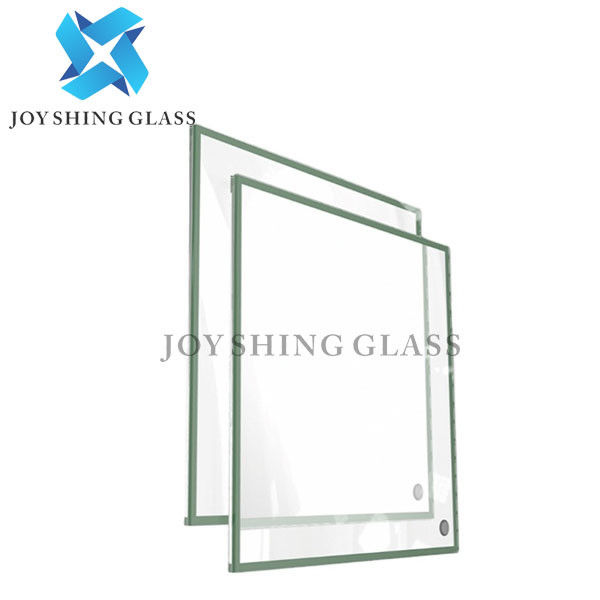

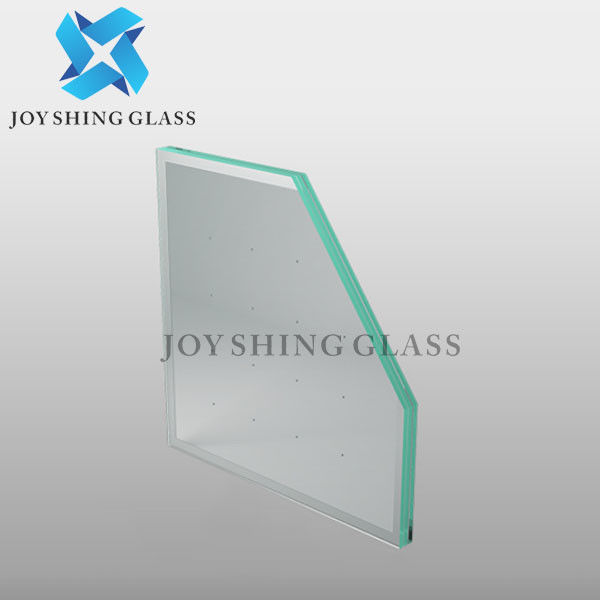

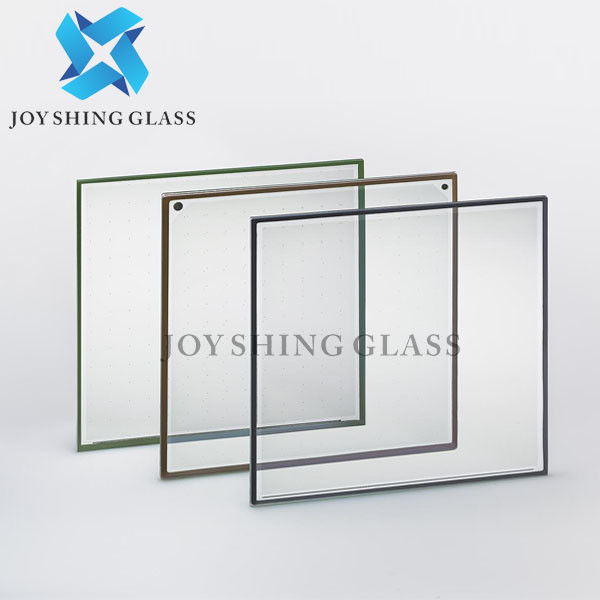

LOW-E Double Vacuum Glass 6.3mm 8.3mm 10.3mm Tempered Vacuum Glass Customized
Vacuum glass is to seal the surroundings of two pieces of flat glass, vacuumize the gap and seal the exhaust hole. The gap between the two pieces of glass is 0.3mm. Generally, at least one of the two pieces of vacuum glass is low-e glass. We can provide laminated vacuum glass, hollow vacuum glass, etc. according to customer requirements
Specification
|
Product name
|
LOW-E Double Vacuum Glass
|
|
Model
|
JY-IV109
|
|
Shape
|
Flat
|
|
Glass thickness
|
6.3mm,8.3mm,10.3mm
|
|
Size
|
600mm*600mm,Custom
|
|
Usage
|
Curtain wall , windows,Glass door etc
|
|
Vacuum Thickness
|
0.3mm
|
| Lead time |
Within 15 days |
|
Warranty
|
25 years
|
|
Certificate
|
CE,ISO, CSi, SGCC
|
|
Packaging Details
|
Sea Worthy Strong Wooden Crates
Can be packaged according to customer requirements
|
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
| Low-E vacuum glass | Thickness | Visible Light | Solar Energy | NFRC 100-2010 | LSG |
Weighted sound insulation dB |
||||||
| Transmittance % | Reflectivity% | Transmittance % | Reflectivity% | U Value W/m²· K | SHGC | Shading Coefficient | ||||||
| Ext. | Int. | Winter Nighttime | Summer Daytime | |||||||||
| 3TL+0.3V+3T | 6.3mm | 84.7 | 11.9 | 12.7 | 70 | 58 | 0.43 | 0.47 | 0.57 | 0.66 | 1.79 | 38 |
| 4TL+0.3V+4T | 8.3mm | 70 | 11.9 | 11 | 64 | 42 | 0.45 | 0.48 | 0.49 | 0.56 | 1.73 | 39 |
| 5TL+0.3V+5T | 10.3mm | 79 | 13 | 12 | 57 | 35 | 0.45 | 0.5 | 0.57 | 0.66 | 1.68 | 41 |
Above data are for reference only. parameters for a specific product needs to be calculated separately.
For parameters related to a specific product. please refer to the data provided by Joy Shing Glass.
Advantages of Vacuum Glass
1. Insulation:
The U value can be as low as 0.48W/(m-K), and the heat insulation effect of 8.3m thick vacuum glass exceeds that of 1.5m thick brick wall.Joy Shing vacuum glass effectively isolates heat transfer, and its thermal insulation performance is 2-4 times that of insulating glass and 6-10 times that of single glass.
2. Sound insulation:
The weighted sound insulation of vacuum glass reaches 39 decibels, and the weighted sound insulation of general insulating glass is about 28 decibels
3. Anti-condensation:
There is no gas inside the vacuum glass, so there will be no "internal condensation and fogging"

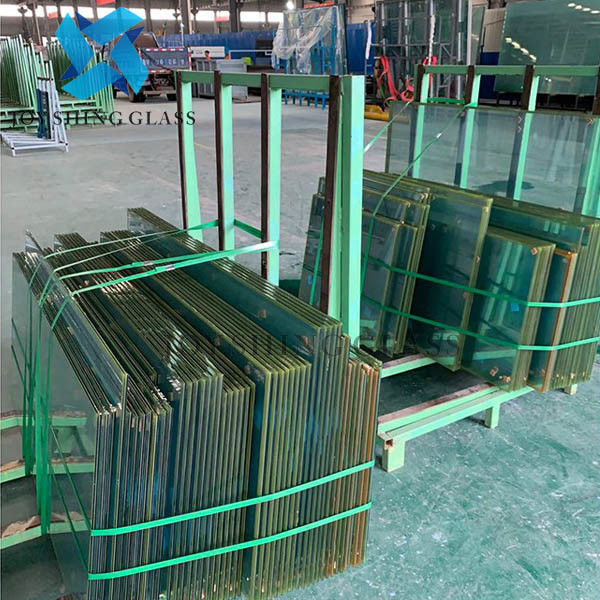

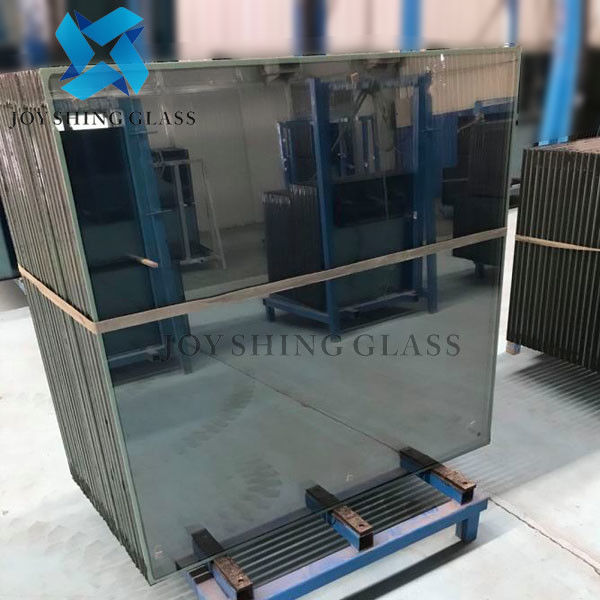

Product photo
Application Fields Of Vacuum Glass
Doors, windows, curtain walls, and skylights for commercial and residential buildings, public facilities, green buildings as well as landmark structures.
Ideal for freezers, wine cabinets, and display cases.
Modern greenhouse farming etc.
