Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Vacuum Glass JY-IV107
Contact Us
Transparent Low-E Vacuum Glass 3TL+0.3V+3T Building Energy-saving Vacuum Glass
Vacuum glass is a new type of energy-saving glass. The structure of vacuum glass is similar to insulating glass, the difference is that the gas in the cavity of vacuum glass is very thin, almost close to vacuum. Compared with insulating glass, vacuum glass is lighter, thinner and has better thermal insulation effect. The service life of Jiaxing vacuum glass can be as long as 25 years.
Vacuum glass seals the surroundings of two pieces of flat glass, evacuates the gap and seals the exhaust holes. The minimum gap between the two pieces of glass is 0.15mm. In order to achieve better heat insulation performance, one of the glass uses Low-E Glass.
Structural comparison between vacuum glass and insulating glass
Specification
|
Product name
|
Transparent Low-E Vacuum Glass
|
|
Model Number
|
JY-IV107
|
|
Shape
|
Flat
|
|
Glass thickness
|
3mm+0.3V+3mm
|
|
Glass Type
|
Low-E Tempered Glass
|
|
Max Size
|
1500mm*2500mm
|
|
Application
|
Glass door, curtain wall , windows ,wine cooler
|
|
Vacuum Thickness
|
0.3mm
|
| Features | Soundproof,heatproof,decoration, shading,energy saving, privacy,solar control |
|
Warranty
|
25 years
|
|
After-sale service
|
Online Technical Support, Onsite Inspection
|
|
Project solution
|
total solution for projects, Others
|
|
Packaging Details
|
Sea Worthy Strong Wooden Crates
|
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
| Model | Low-E vacuum glass | Thickness | Visible Light | Solar Energy | NFRC 100-2010 | LSG |
Weighted sound insulation dB |
||||||
| Transmittance % | Reflectivity% | Transmittance % | Reflectivity% | U Value W/m²· K | SHGC | Shading Coefficient | |||||||
| Ext. | Int. | Winter Nighttime | Summer Daytime | ||||||||||
| JY-IV107 | 3TL+0.3V+3T | 6.3mm | 84.7 | 11.9 | 12.7 | 70 | 58 | 0.43 | 0.47 | 0.57 | 0.76 | 1.79 | 48 |
Above data are for reference only. parameters for a specific product needs to be calculated separately.
For parameters related to a specific product. please refer to the data provided by Joy Shing Glass.

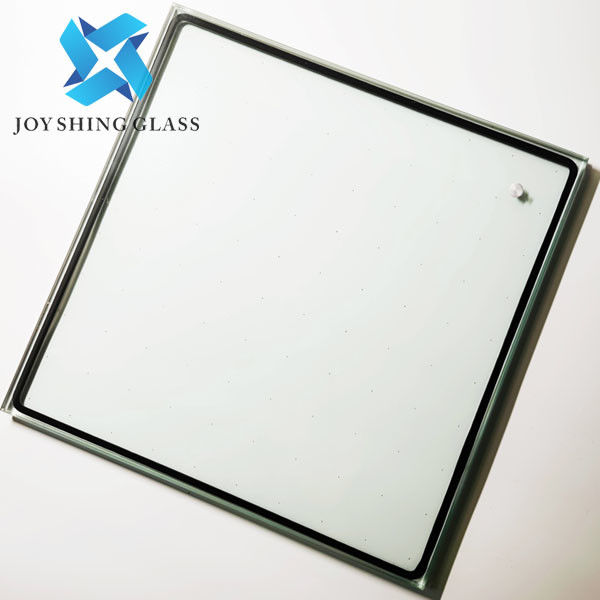

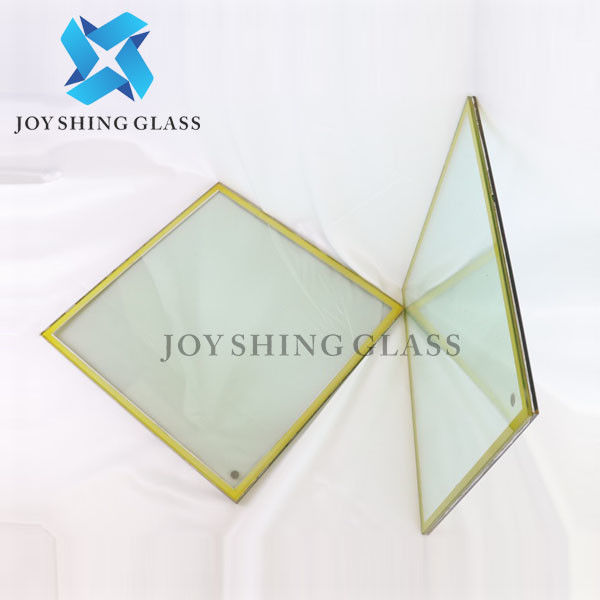

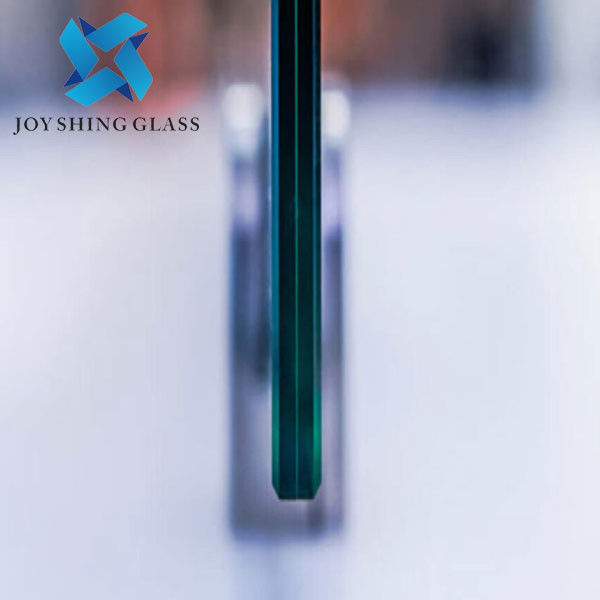

Product photo
Application fields of vacuum glass
Vacuum glass solves key problems in many fields with its top heat insulation, sound insulation and anti-frost performance. It is widely used in buildings, doors and windows, greenhouses, automobiles, freezers, etc.
