Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Vacuum Glass JY-IV106
Contact Us
Clear Vacuum Insulated Glass 3mm 4mm 5mm 6mm 8mm Silver Tempered Glass
Joy Shing Glass factory directly sells Clear Vacuum Insulated Glass, which is a kind of vacuum and insulated composite flat glass, which has the advantages of heat insulation, sound insulation, anti-condensation, energy saving, etc.
It is widely used in building energy saving, curtain wall, skylight, freezer, wine cabinet, solar photovoltaic and other fields.
Specification
|
Product name
|
Clear Vacuum Insulated Glass
|
|
Configuration
|
E.g:4T+0.15V+4LT+16A+4L
|
|
Shape
|
Flat
|
|
Structure
|
Hollow
|
|
Glass type
|
Clear Tempered Glass,Low-e Tempered Glass
|
|
Color
|
Clear , black, grey,bronze,green etc
|
|
Application
|
Glass door, curtain wall , windows ,wine cooler
|
|
Single glass thickness
|
3mm,4mm,5mm,6mm
|
| Size | Customized,min size:300*300mm max size:1500*2500mm |
| Features | Soundproof,heatproof,decoration, shading,energy saving, privacy,solar control |
|
Warranty
|
5 years
|
|
After-sale service
|
Online Technical Support, Onsite Inspection
|
|
Project solution
|
Graphic design, total solution for projects, Others
|
|
Place of origin
|
China
|
Remark:
4T: 4mm tempered glass ; 4LT: 4mm Low-e tempered glass ; 4L: 4mm Low-e glass
0.15V: vacuum layer 0.15mm ; 16A: 16mm argon layer
| Configuration | Thickness mm | U Value W/m²· K | R Value K/W |
Weighted sound insulation db |
Condensation temperature ℃ |
| 4T+0.15V+4LT+16A+4L | 28.15 | 0.46 | 13 | ≥36 | ≤-46 |
Above data are for reference only. parameters for a specific product needs to be calculated separately.
For parameters related to a specific product. please refer to the data provided by Joy Shing Glass.

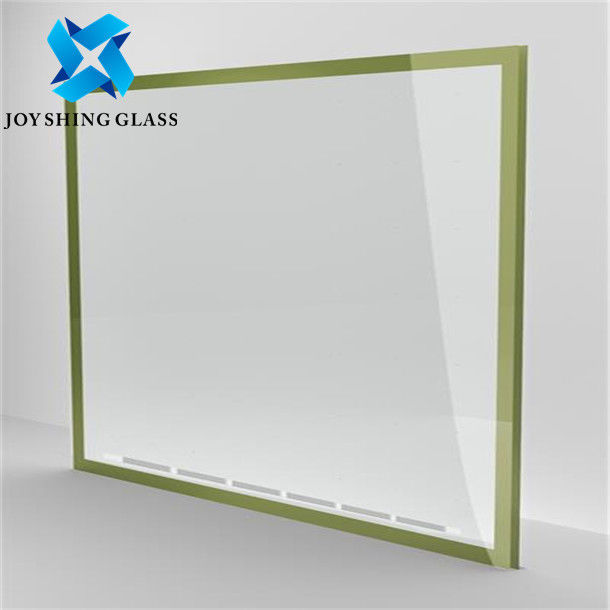

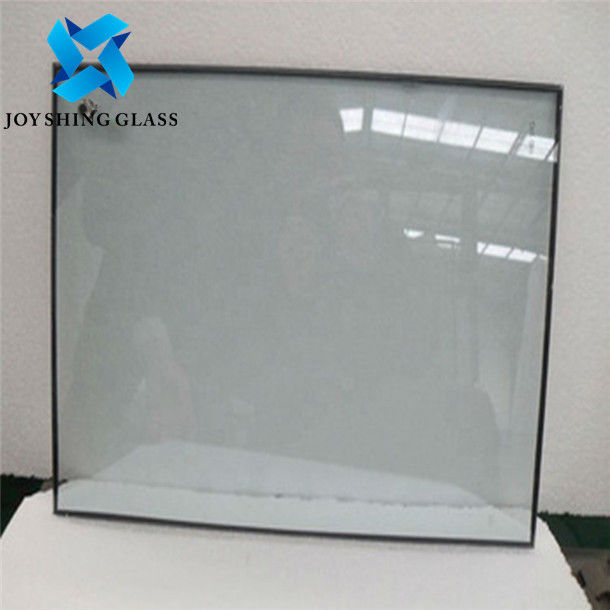

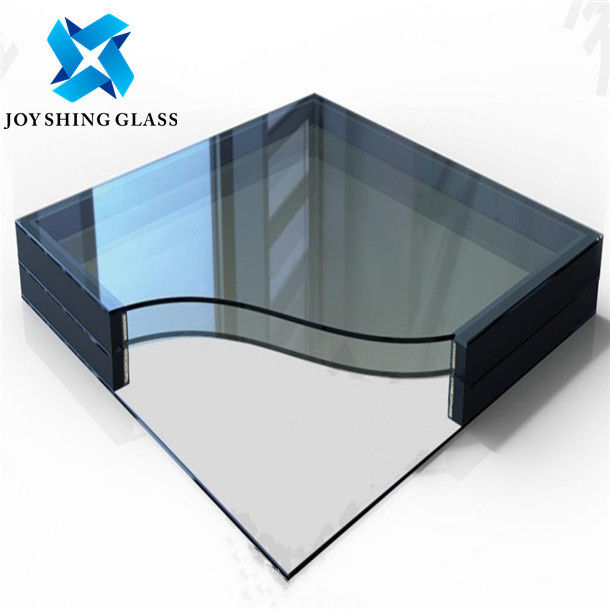

Product photo
