Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Vacuum Glass JY-IV103
Video

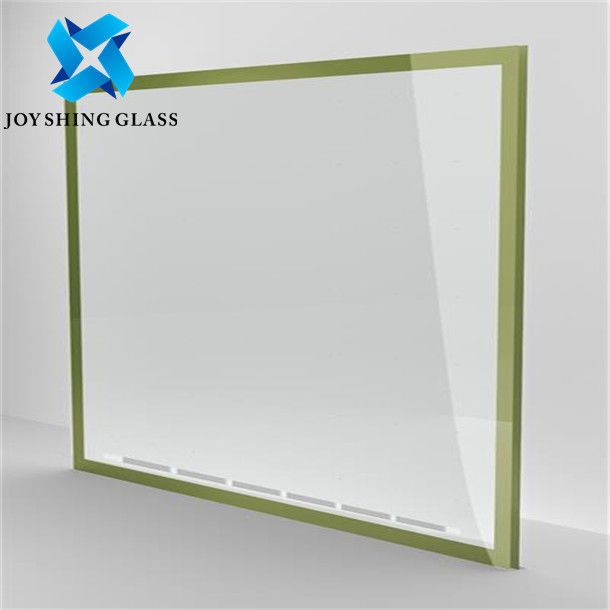

Thin Vacuum Insulated Glass Tempered Glass 8.3mm Shape Customized
Specification
| Model | Glass Configuration | (%) Visible Light% | Solar Energy% | NFRC 100-2010 | ||||||
| Tv1% | Rvt% | Rvt% | Ts% | U Value W/m²· K | SHGC | Shading Coefficient | ||||
| Ext. | Int. | Ext. | Winter Nighttime | Summer Daytime | ||||||
| JY-IV103 | 5T-PLE60C+0.4V+5T | 53 | 21 | 11 | 21 | 34 | 0.69 | 0.69 | 0.41 | 0.47 |
| 6T-PDE80A+0.4V+6T | 71 | 10 | 11 | 27 | 36 | 0.53 | 0.47 | 0.41 | 0.48 | |
| 6T-PLE60C+12A+6T+0.4V+6 | 48 | 24 | 17 | 22 | 28 | 0.24 | 0.32 | 0.37 | 0.43 | |
| 6T-PDE80A+12A+6T+0.4V+6T | 64 | 14 | 17 | 29 | 31 | 0.2 | 0.26 | 0.38 | 0.43 | |
| 6TPDE80A+0.4V+6T+12A+6T+0.76P+6T | 58 | 18 | 22 | 30 | 27 | 0.2 | 0.25 | 0.35 | 0.4 | |
| 6T-PLE88A+0.4V+6T+12A+6T | 71 | 17 | 17 | 22 | 41 | 0.26 | 0.29 | 0.51 | 0.59 | |

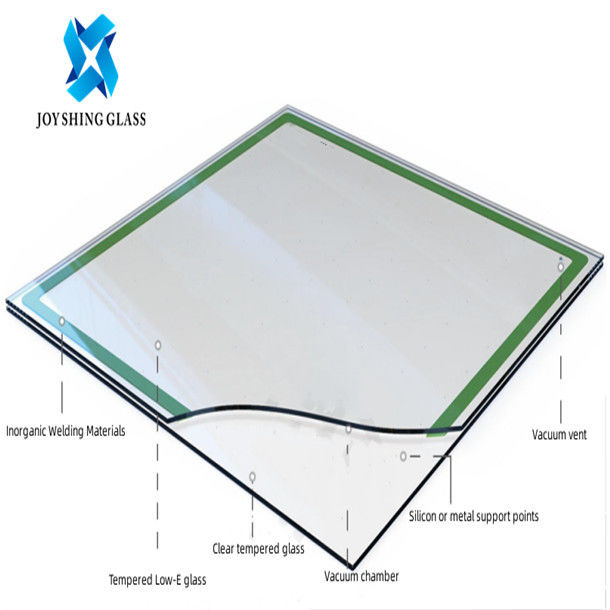

| 1. Super glass welding technology The technology is the key technology to solve the whole toughened vacuum glass edge sealing, and to solve the stress prob- lem caused by the full toughened vacuum insulated glass edge banding. |
| 2. "Guangyan"vacuum-measuring device "Guangyan" is a set of qualitative detec- tion vacuum degree device for detecting vacuum glass, which can efficiently and accurately detect the degree of vacuum |
| 3. High vacuum exhausting technology The vacuum degree of Joy Shing vacuum glass can reach 6X10-3Pa to meet the crite- ria of high vacuum. Ordinary technology can only achieve medium vacuum. |
| 4. Flexible metal sealing technology Flexible metal edge banding, produc tion technology of fully tempered vacuum glass without exhaust pipe internationalleader! |
| 5. Alloy Support Point Technology Joy Shing alloy support points increase the height of the vacuum cavity, with better heat insulation performance, smaller con tact area with glass and fully automated layout of points. |
| 6. Fully transparent silicon support point The technology is the key technology which solves the heat transfer coefficient, supporting strength and visible light transmittance of point of vacuum glass support point. |
| 7. Sealing technology for multiple glass This technology is the key one, which not only ensures the air tightness of vacuum glass, but also ensures the large-scale pro- duction of vacuum insulated glass and the applica tion in special fields |
Application

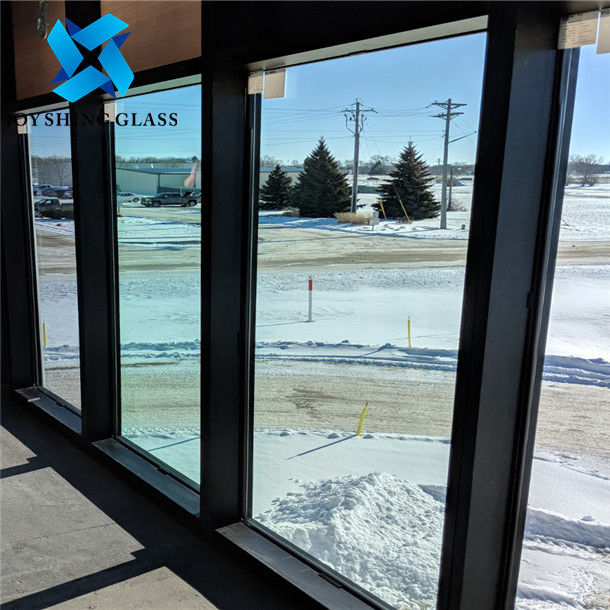

Thin vacuum insulated glass is widely used in building energy saving, curtain wall, skylight, freezer, wine cabinet, solar photovoltaic and other fields.
