Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Vacuum Glass JY-IV102
Contact Us

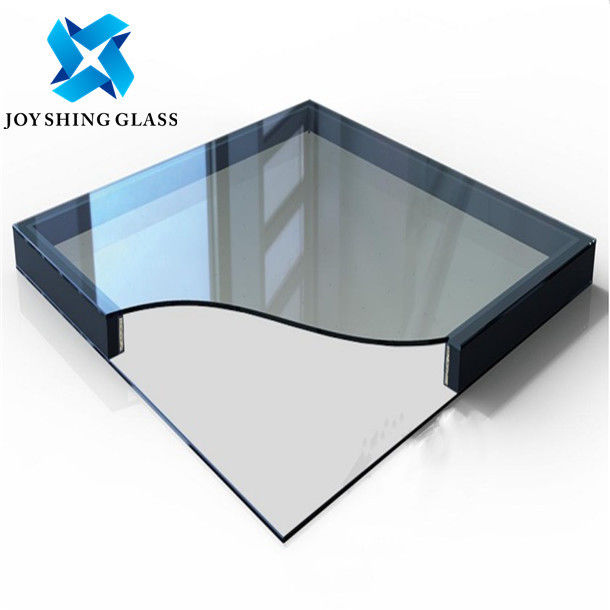

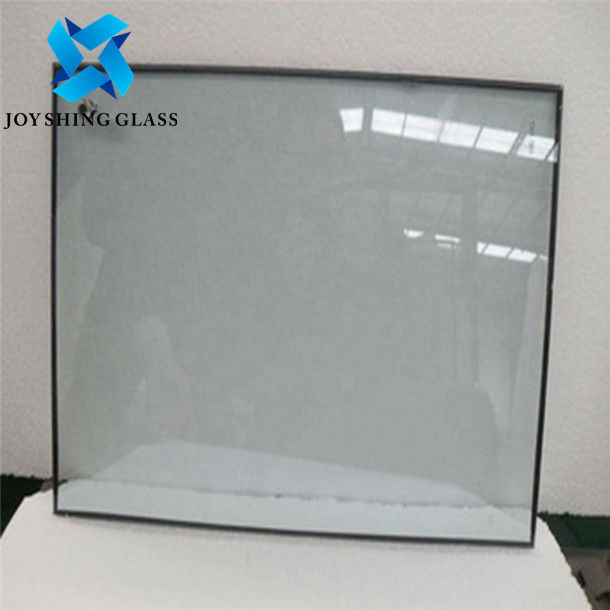

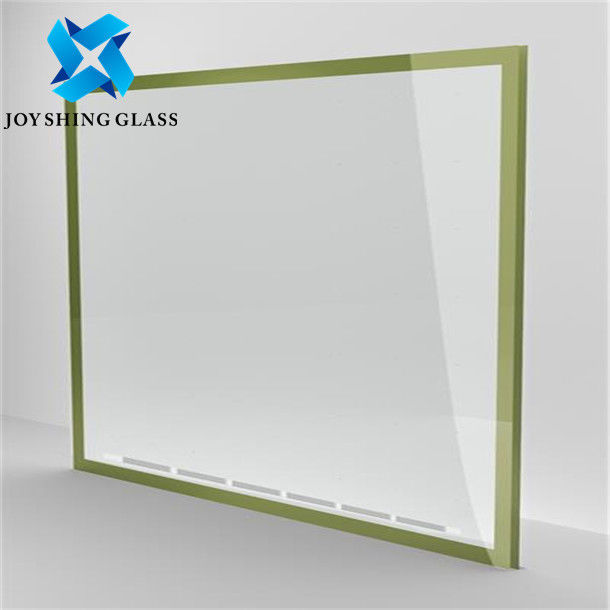

Vacuum Insulated Glass Heatproof / Soundproof Tempered Vcauum Glass
Joy Shing vacuum insulated glass is tempered vacuum insulation glass, which can greatly reduce the heat transfer and sound transfer on both sides of the glass. It has the characteristics of excellent thermal insulation, sound insulation and noise reduction, and not easy to condense. At the same time, tempered vacuum glass also has the characteristics of light and thin structure, lead-free environmental protection, and long service life.
Joy Shing Glass Co., Ltd. can produce glass thickness, size, color,glass laminate, hollow and other customized processing according to customer requirements. Provide integrated glass solutions, online technical consultation, and perfect after-sales service for your project.
Specification
|
Product name
|
Vacuum Insulated Glass
|
|
Configuration
|
E.g:5T+0.3V+5LT
|
|
Shape
|
Flat
|
|
Glass type
|
Tempered Glass,Low-e Tempered Glass
|
|
Color
|
Clear,grey,French green,Ford blue,Bronze,etc.
|
|
Thickness
|
Customized
|
| Size | Customized,min size:300*300mm max size:1500*2500mm |
|
Warranty
|
25 years
|
|
After-sale service
|
Online Technical Support, Onsite Inspection
|
|
Project solution
|
Graphic design, total solution for projects, Others
|
|
Place of origin
|
China
|
|
Packaging |
Sea Worthy Strong Wooden Crates |
|
Lead time |
within 20 days |
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
| Model | Low-E vacuum glass | color | Visible Light% | NFRC 100-2010 | |||||
| Tv1% | Rvt% | U Value W/m²· K | SHGC | Shading Coefficient | |||||
| Ext. | Int. | Winter Nighttime | Summer Daytime | ||||||
| JY-IV102 | 5T Clear +0.3V+5LT | Clear | 78 | 12 | 13 | 0.62 | 0.7 | 0.57 | 0.66 |
| 5T EU grey +0.3V+5LT | Grey | 40 | 6 | 11 | 0.62 | 0.7 | 0.33 | 0.38 | |
| 5T French green +0.3V+5LT | Green | 68 | 10 | 12 | 0.62 | 0.7 | 0.39 | 0.45 | |
| 5T Ford blue +0.3V+5LT | Blue | 55 | 8 | 11 | 0.62 | 0.7 | 0.36 | 0.42 | |
| 5T Bronze +0.3V+5LT | Bronze | 41 | 7 | 10 | 0.62 | 0.7 | 0.38 | 0.44 | |
Remark:
5T: 5mm tempered glass ; 5LT: 5mm Low-e tempered glass ; 0.3V: vacuum layer 0.3mm
Above data are for reference only. parameters for a specific product needs to be calculated separately.
For parameters related to a specific product. please refer to the data provided by Joy Shing Glass.

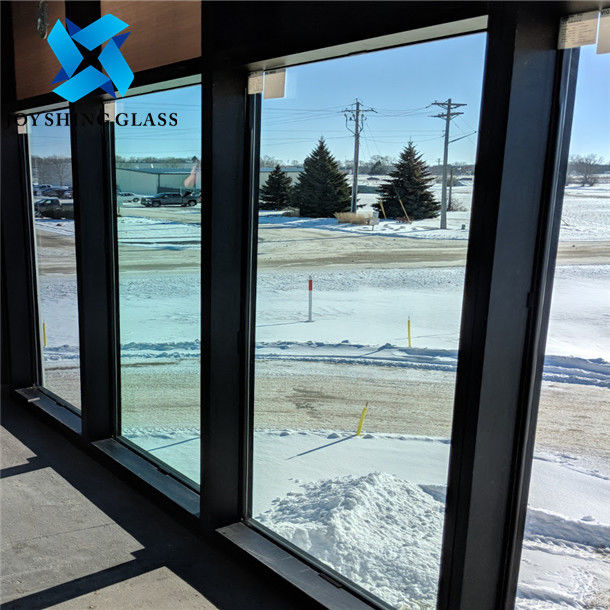

Application fields of vacuum glass
Vacuum insulated glass solves key problems in many fields with its top heat insulation, sound insulation and anti-frost performance. ) within 0.8, and can reduce the cost of passive windows by more than 50%; direct air glass can also be applied to the glass doors of freezers and refrigerators to solve the problem of frost and condensation on the glass doors, and at the same time save money for freezers and refrigerators About 70% of the electric energy; vacuum insulated glass is used in the vehicle field, which can reduce noise and prevent frost on the windshield; vacuum glass is used in the photovoltaic field, which can improve the service life of photovoltaic panels.
