Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Toughened Glass JY-T306
Contact Us

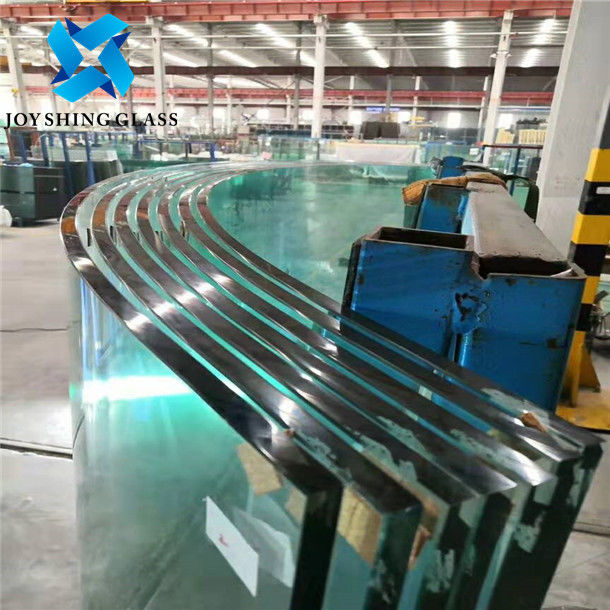

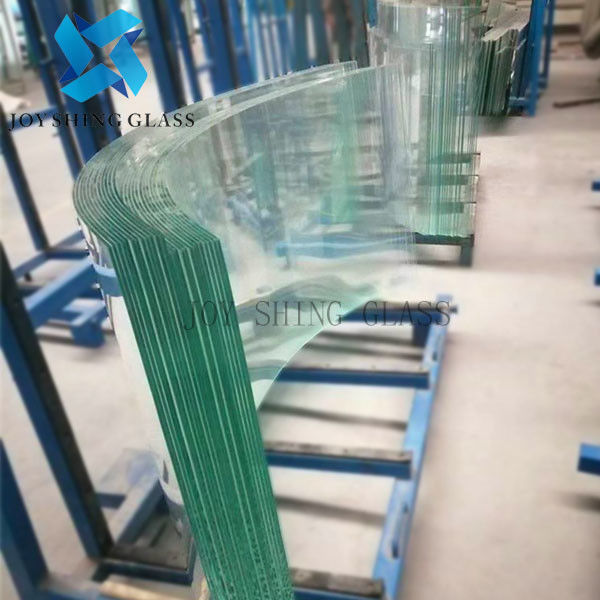

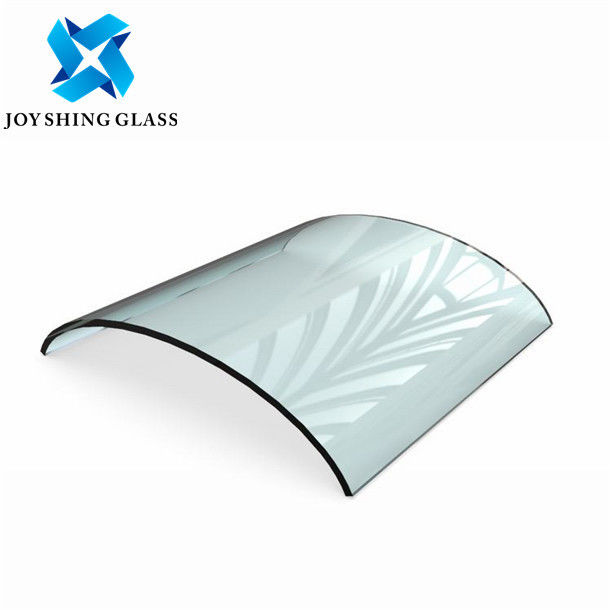

Decoration Glass Curved Tempered Glass 12mm 15mm 19mm 25mm
Joy Shing Glass supplies decorative curved tempered glass,is five times stronger than ordinary glass.Tempered glass also called safety glass is produced by heating regular annealed glass to a very high temperature (approximately 650℃) to its softening point, then cooling it rapidly. This process will make the glass surface under compression and the glass center under tension to increase its resistance to wind load, impact, and thermal shock 5 times more than regular annealed glass of the same thickness.
We can produce tempered glass in different thicknesses, sizes and colors according to customer requirements.
Specification
| Product name | Decoration Glass |
| Model | JY-T306 |
|
Glass Type
|
Tempered Glass
|
|
Thickness Available
|
3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm, 25mm, etc
|
|
Color Option
|
Clear, Low Iron, Super White, Super Clear, Extra White, Starphire, Optiwhite, Euro Grey, Dark Grey, Crystal Grey, Brown,
|
| Bronze,Ocean Blue, Ford Blue, Dark Blue,etc. | |
|
Size
|
Custom Sizes,
|
|
Tolerance
|
Normally +-0.2mm
|
|
Edge Processing
|
Flat Edge, Seamed Edge, Polished Edge, Bevelled edge, Flat Polished Edge, Round Edge
|
|
Irregular Shape
|
Rectangular, Round, Oval, Trapezoid, Parallel, etc. All edges can be bright polished.
|
|
Hole & Notch Available
|
Countersunk holes, round holes, bell-mouth holes, simple notch, mickey ears cutouts, etc. The edge of hole and notch can be
|
| polished by CNC | |
| Advantage | 1. 5 times harder than ordinary float glass. |
| 2. Tensile strength for float glass 40 MPa (N/mm2) ,tempered glass , 120-200 MPa (N/mm2) | |
| 3. It withstands abrupt temperature change of 220 Centigrade. | |
| 4. Once breakage occurs, the glass disintegrates into small cubical fragments, which are relatively harmless to human body. | |
|
Lead Time
|
Generally 2-4 weeks, depend on order quantity.
|
| Packing | Wooden case with iron belt packing for FCL sea ship, full wooden box for LCL sea or air ship. |
Joy Shing Glass Co., Ltd. was founded in 2013. We are integrated in producing, selling, service providing for all kinds of custom building glass like acid etched glass, low-e glass, mirror glass, tempered glass, laminated glass, insulated glass, AR coating glass, fire-rated glass, U channel glass, PDLC smart glass, etc.
Application
